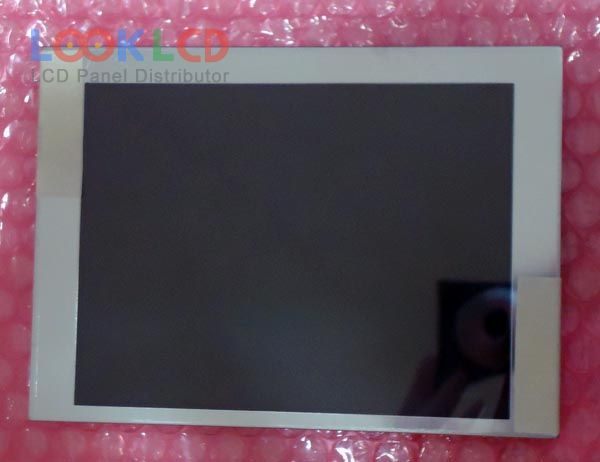

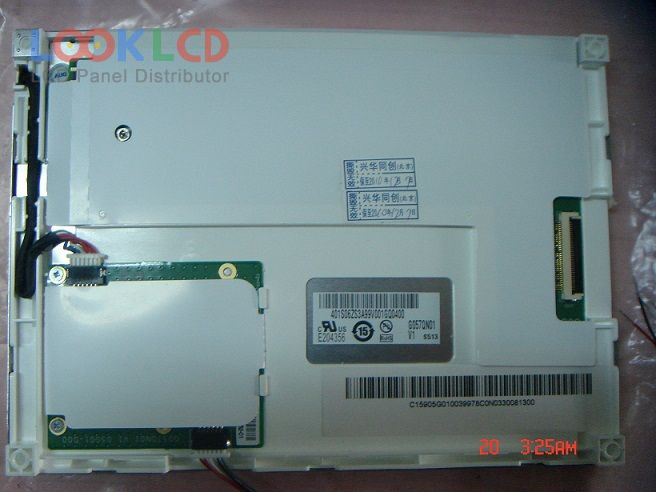

| Varenummer | G057QN01 V1 |
| Mærke | AUO |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 800 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | G057QN01 V1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 144×104.6 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 800 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 15/10 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | CMOS (1 ch, 6-bit), 33 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | IA |
| G057QN01 V0 | AUO | 5.7 | 320×240 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G057QN01 V2 | AUO | 5.7 | 320×240 |
| G057QTN01.1 | AUO | 5.7 | 320×240 |
| G057VN01 V0 | AUO | 5.7 | 640×480 |
| G057VTN01.1 | AUO | 5.7 | 640×480 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| SP14Q001 | KOE | 5.7 | 320×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TX14D11VM1CAA | KOE | 5.7 | 320×240 |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| G150XTN06.4 | AUO | 15.0 | 1024×768 |
| LB121S02-A2 | LG Display | 12.1 | 800×600 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| M121MNS1 R0 | IVO | 12.1 | 800×600 |
| PD064VL1 | E Ink | 6.4 | 640×480 |
| RGS11096096FR006 | RiTdisplay | 1.1 | 96×96 |
| RGS32256064YH001 | RiTdisplay | 3.2 | 256×64 |
| TM121SV-02L11 | SANYO | 12.1 | 800×600 |
