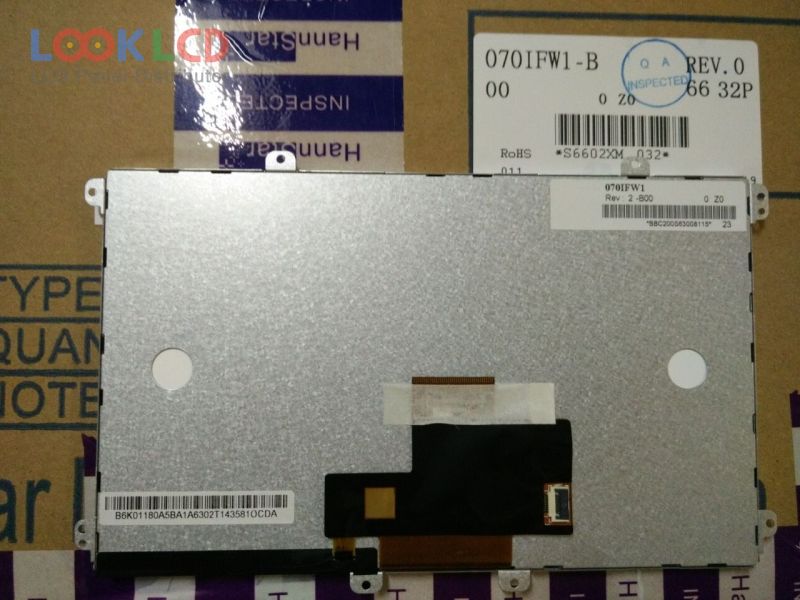

| Varenummer | HSD070IFW1-B00 |
| Mærke | HannStar |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD070IFW1-B00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×86.64 mm |
| overflade | Antiglare |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193150% |
| responstid | 4/12 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/70/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S12PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDD/VBAT) |
| Ansøgning | CNS |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| C050FTN01.0 | AUO | 5.0 | 480×234 |
| C070VAN01.3 | AUO | 7.0 | 800×480 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| CLAA043JE01CW | CPT | 4.3 | 480×272 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
