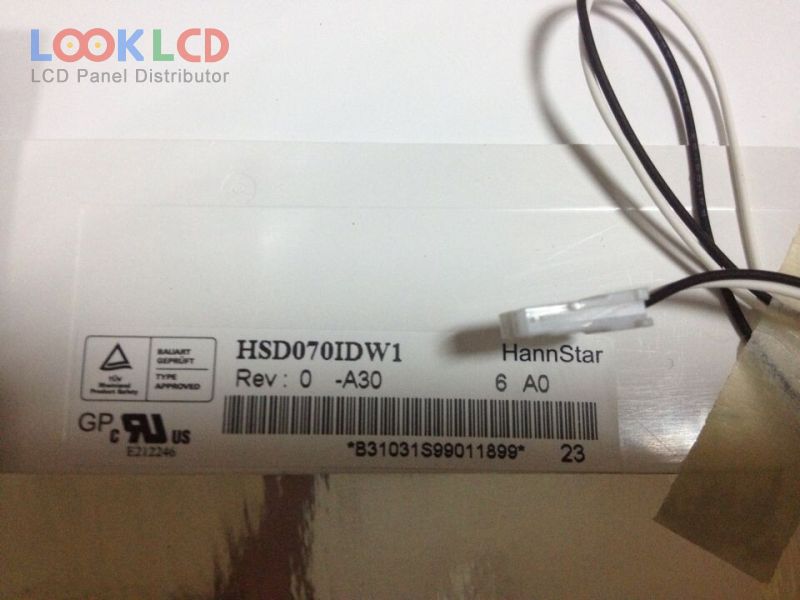

| Varenummer | HSD070IDW1-A30 |
| Mærke | HannStar |
| Størrelse | 7.0 |
| Ansøgning | DPF |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HannStar |
| panel model | HSD070IDW1-A30 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×86.64 mm |
| omrids | 165×104×5.4 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC) |
| responstid | 5/20 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S7PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| indgangsspænding | 3.0/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | DPF |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| A085FW01 V5 | AUO | 8.5 | 480×234 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| AT080TN52 V.1 | Innolux | 8.0 | 800×600 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| EJ080NA-05B | Innolux | 8.0 | 800×600 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| PM102ZY2 | E Ink | 10.2 | 1024×600 |
