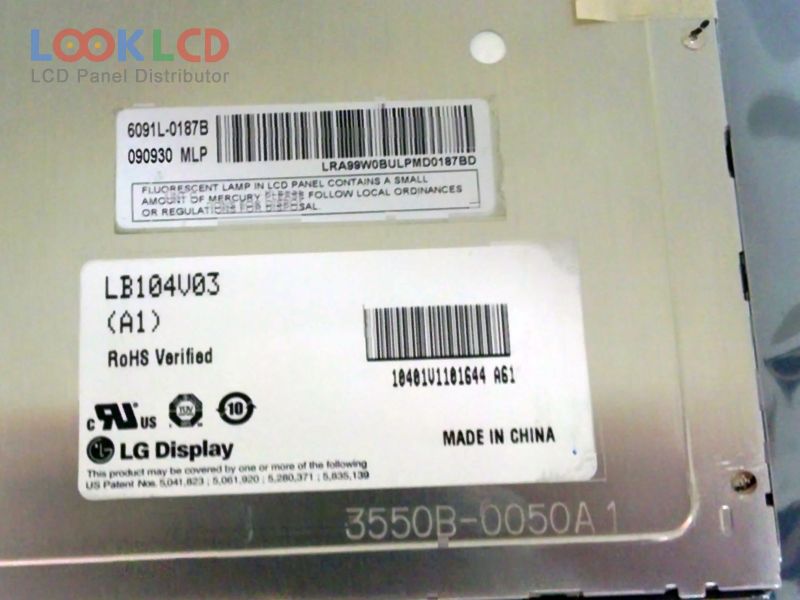

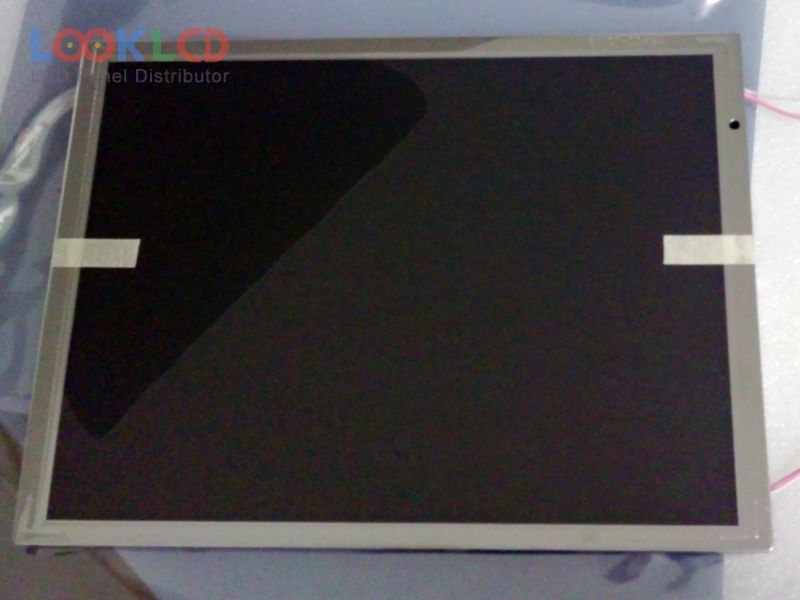

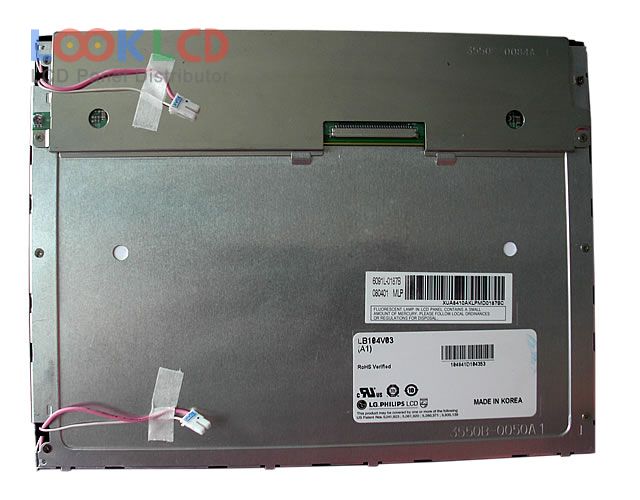

| Varenummer | LB104V03-A1 |
| Mærke | LG Display |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | LG.Philips LCD |
| panel model | LB104V03-A1 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 236×180×10.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 5/25 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| LB104S01-TL01 | LG Display | 10.4 | 800×600 |
| LB104S01-TL02 | LG Display | 10.4 | 800×600 |
| LB104S02-TD01 | LG Display | 10.4 | 800×600 |
| LB104S04-TL01 | LG Display | 10.4 | 800×600 |
| LB104S04-TL02 | LG Display | 10.4 | 800×600 |
| LB104V03-A1 | LG Display | 10.4 | 640×480 |
| LB104V03-TD01 | LG Display | 10.4 | 640×480 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
| AA084VB02 | Mitsubishi | 8.4 | 640×480 |
| AA121SL12 | Mitsubishi | 12.1 | 800×600 |
| AA121XL01 | Mitsubishi | 12.1 | 1024×768 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G133IGE-L03 | Innolux | 13.3 | 1280×800 |
| KCG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| NL10276BC20-37 | NLT | 10.4 | 1024×768 |
| PD064VXA | E Ink | 6.4 | 640×480 |
| S088WX03 | CDTECH | 8.8 | 1280×320 |
| TM080SV-22L03 | SANYO | 8.0 | 800×600 |
