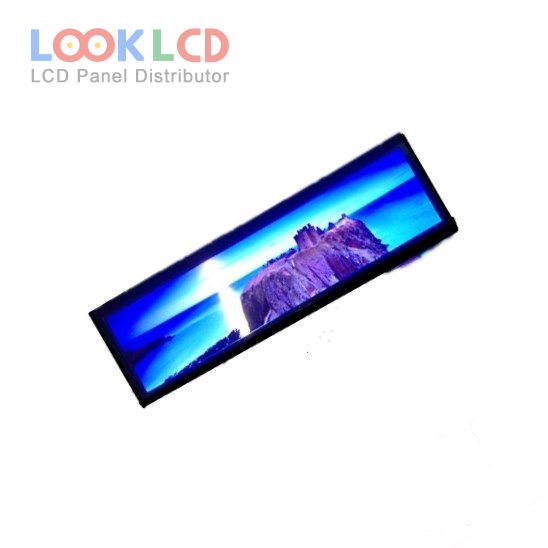

| Varenummer | S088WX03 |
| Mærke | CDTECH |
| Størrelse | 8.8 |
| Ansøgning | IA |
| Løsning | 1280×320 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CDTECH |
| panel model | S088WX03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.8 inch(2/5 cut of 10.1") |
| løsning | 1280(RGB)×320 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 216.96×54.24 mm |
| omrids | 229.66×67.5×6.2 mm |
| overflade | |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193162% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S9PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | IA |
