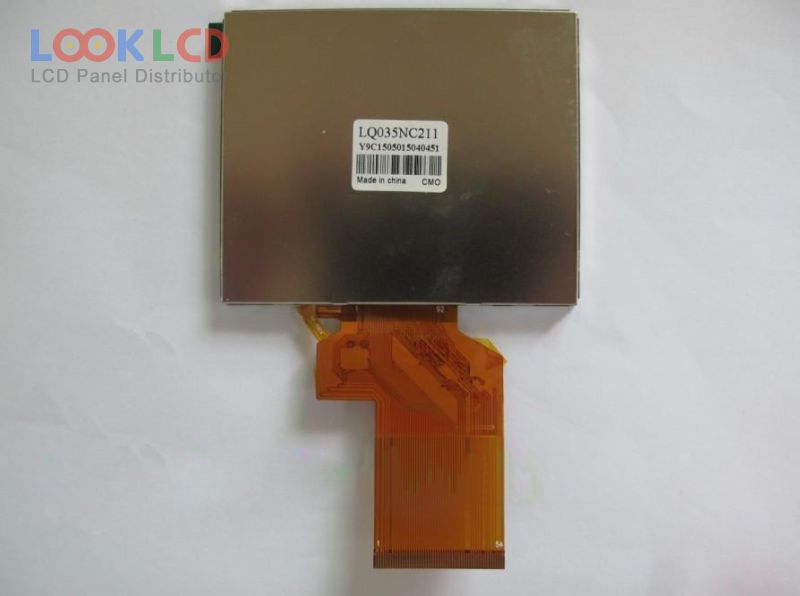

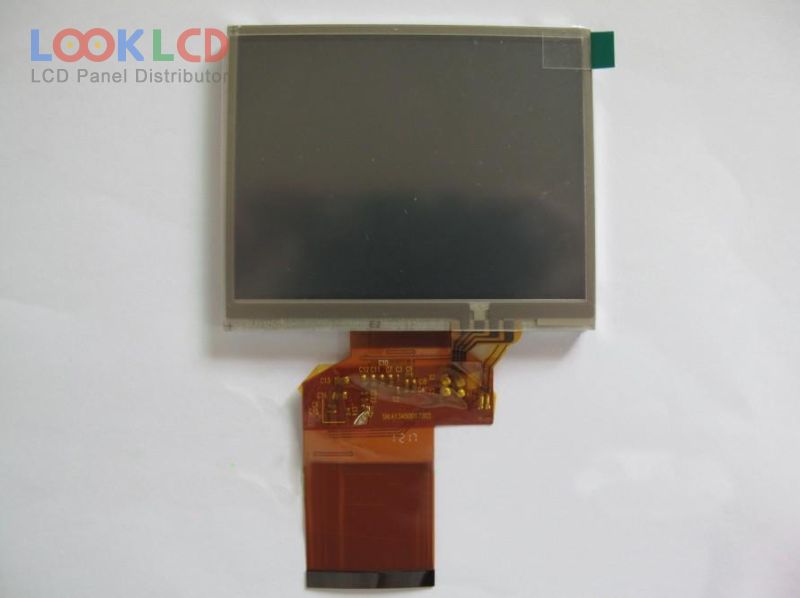

| Varenummer | LQ035NC211 |
| Mærke | Innolux |
| Størrelse | 3.5 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 400:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel/Serial |
| panel mærke | ChiHsin |
| panel model | LQ035NC211 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.08×52.56 mm |
| omrids | 76.9×63.9×4.56 mm |
| overflade | Antiglare (Haze 20%) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.7M , CIE193160% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | DSC |
