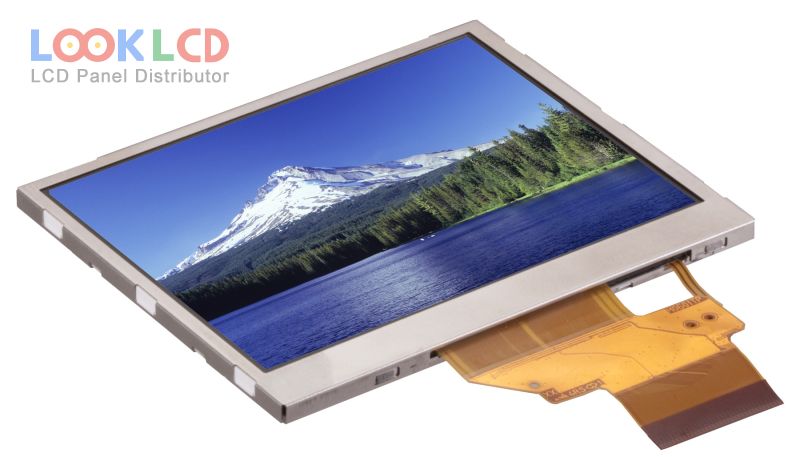

| Varenummer | LQ035Q3DG01 |
| Mærke | SHARP |
| Størrelse | 3.5 |
| Ansøgning | HHP |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ035Q3DG01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.56×52.92 mm |
| omrids | 76.9×63.9 mm |
| overflade | Antiglare |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 8/20 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDDIO/VCI) |
| Ansøgning | HHP |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ035Q1DG04 | SHARP | 3.5 | 320×240 |
| LQ035Q2DD56 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| 28QVF2J | SII | 2.8 | 240×320 |
| 32WQF0H | SII | 3.2 | 240×400 |
| AM-320240-015A | Other | 1.5 | 320×240 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| COM32H3N74ULC | ORTUSTECH | 3.2 | 480×800 |
| G050VVN01.0 | AUO | 5.0 | 480×800 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LQ030Q3DG01 | SHARP | 3.0 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
