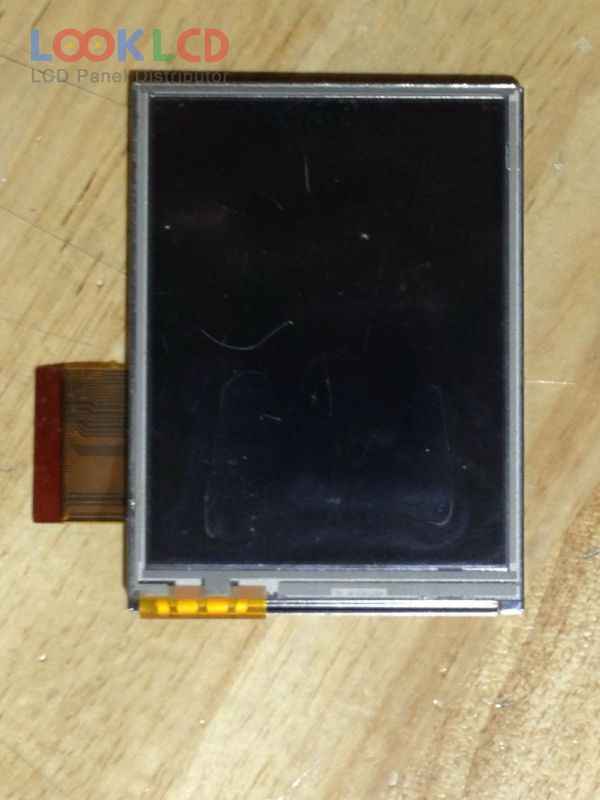

| Varenummer | TX09D70VM1CEA |
| Mærke | KOE |
| Størrelse | 3.5 |
| Ansøgning | HHP |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 320 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HITACHI |
| panel model | TX09D70VM1CEA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, TMR |
| aktivt område | 53.64×71.52 mm |
| omrids | 64×86×5.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 320 cd/m² (Typ.) |
| kontrastforhold | 300 : 1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/80/60 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S2PWLEDWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3/8.48/15.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | HHP |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| CLAA035JA01CW | CPT | 3.5 | 144×480 |
| LH350WV3-SH01 | LG Display | 3.5 | 480×854 |
| LMS350GF03-001 | Samsung | 3.5 | 320×240 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| TD035STEB1 | TPO | 3.5 | 240×320 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
| 30WQF0H | SII | 3.0 | 240×400 |
| 35HVE1H | SII | 3.5 | 320×480 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| LQ030Q3DG01 | SHARP | 3.0 | 320×240 |
| LQ038Q7DB03 | SHARP | 3.8 | 240×320 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| S035V01 | CDTECH | 3.5 | 480×640 |
| TFTMD030035 | JDI | 3.0 | 640×480 |
| TX09D40VM3CBA | KOE | 3.5 | 240×320 |
| YX035CM31 | 3.5 | 320×240 |
