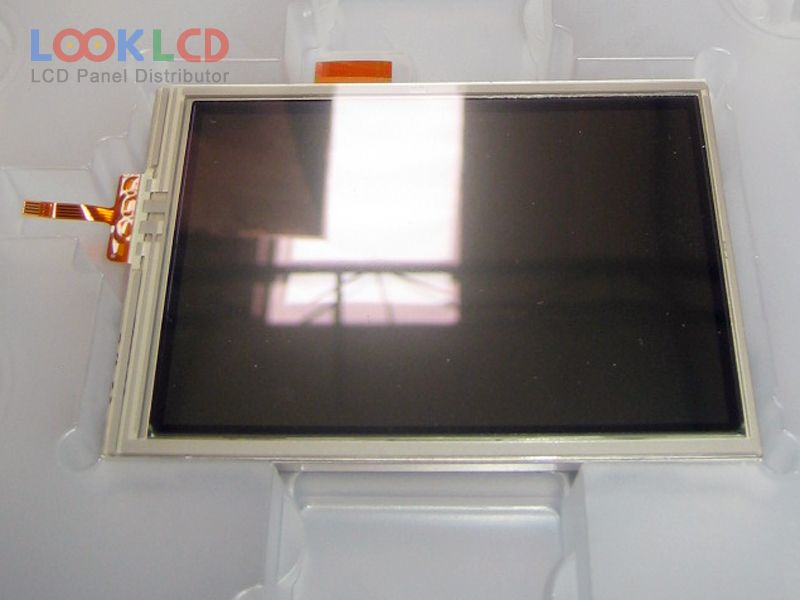

| Varenummer | LQ038J7DH52 |
| Mærke | SHARP |
| Størrelse | 3.8 |
| Ansøgning | MPH |
| Løsning | 320×480 |
| Sammensætning | LCM |
| Lysstyrke | 80 |
| CR | 60:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ038J7DH52 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.8 inch |
| løsning | 320(RGB)×480 , HVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 52.8×79.2 mm |
| omrids | 64.5×92.7 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | 60:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 20/35 (Typ.)(Tr/Td) |
| synsvinkel | 55/55/55/55 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 39 pins |
| indgangsspænding | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| Ansøgning | MPH |
