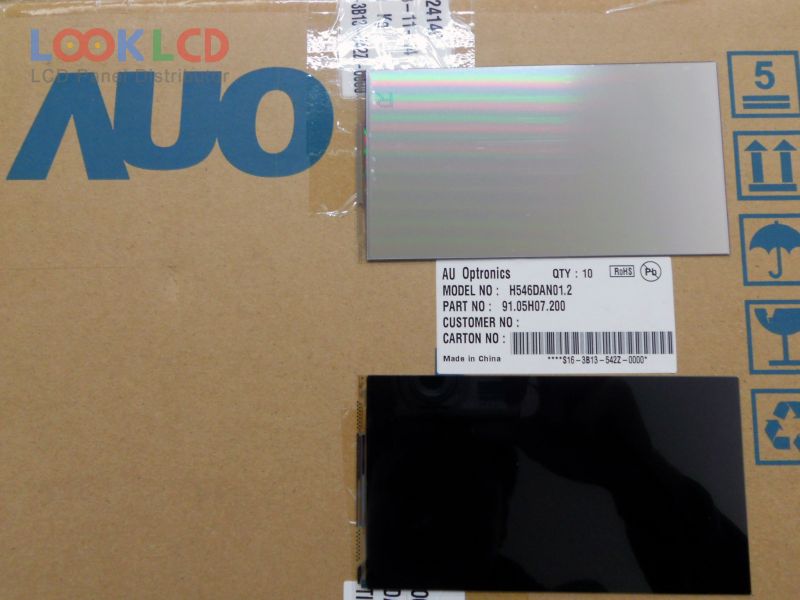

| Varenummer | H546DAN01.2 |
| Mærke | AUO |
| Størrelse | 5.5 |
| Ansøgning | MPH |
| Løsning | 1080×1920 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | |
| panel mærke | AUO |
| panel model | H546DAN01.2 2 Compatible model |
| paneltype | LTPS TFT-LCD , CELL |
| panelstørrelse | 5.5 inch |
| løsning | 1080(RGB)×1920 , FHD |
| visningstilstand | AHVA, Normally Black, Transmissive |
| aktivt område | 68.04×120.96 mm |
| omrids | 70.44×127.61×0.636 mm |
| overflade | Hard coating |
| glas dybde | 0.18+0.18 mm |
| transmissivitet | 4.2% (Typ.)(with APCF) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193170% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| driver ic | COG Built-in NT35596 |
| indgangsspænding | 1.8/2.8V (Typ.)(VDDI/VCI) |
