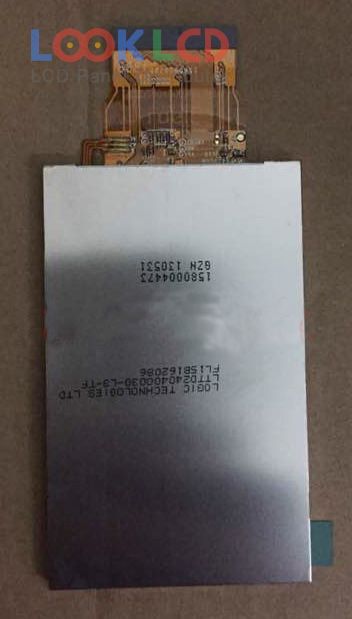

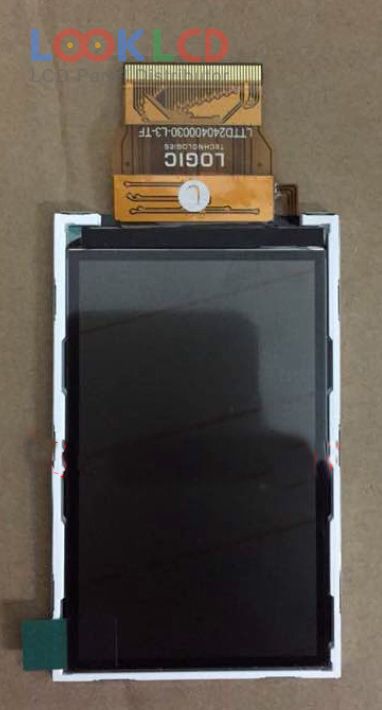

| Varenummer | TM030LBHT1 |
| Mærke | Tianma |
| Størrelse | 3.0 |
| Ansøgning | MPH |
| Løsning | 240×400 |
| Sammensætning | LCM |
| Lysstyrke | 130 |
| CR | 100:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU/RGB/SPI |
| panel mærke | TIANMA |
| panel model | TM030LBHT1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 240(RGB)×400 , WQVGA |
| visningstilstand | ECB, Normally White, Transflective |
| aktivt område | 38.88×64.8 mm |
| omrids | 47.28×76.4 mm |
| overflade | |
| lysstyrke | 130 cd/m² (Typ.) |
| kontrastforhold | 100:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 40/45/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S1PWLEDWithout Driver |
| signal interface | CPU/RGB/SPI, 45 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(VCC/IOVCC) |
| Ansøgning | MPH |
| A030DN05 V0 | AUO | 3.0 | 320×240 |
| LQ31E05 | SHARP | 3.0 | 383×234 |
| LS030B3UX01D | SHARP | 3.0 | 240×400 |
| LS030Q7DH01 | SHARP | 3.0 | 240×320 |
| TD030MHEB3 | TPO | 3.0 | 320×240 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
| TM030LBHT1 | Tianma | 3.0 | 240×400 |
| TM030LDHT1 | Tianma | 3.0 | 240×400 |
| TM030LDHT2 | Tianma | 3.0 | 240×400 |
| TM030ZDHG01 | Tianma | 3.0 | 320×320 |
| AMCE002 | Samsung | 2.4 | 240×320 |
| BTL282440-310L | BOE | 2.8 | 240×400 |
| C0240QGLG-T | CMEL | 2.4 | 240×320 |
| LMS246GF06 | Samsung | 2.5 | 320×240 |
| LMS320HF46 | Samsung | 3.2 | 240×432 |
| LQ055T3SX02Z | SHARP | 5.5 | 1080×1920 |
| LS059T1SX01 | SHARP | 5.9 | 1080×1920 |
| LTP283QV-F04 | Samsung | 2.8 | 240×320 |
| TD025THEB5 | TPO | 2.5 | 320×240 |
| TM028LDH01 | Tianma | 2.8 | 240×400 |
