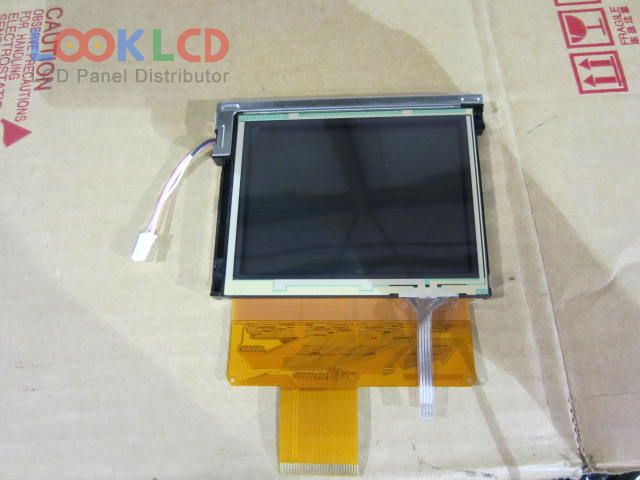

| Varenummer | LQ039Q2DS51 |
| Mærke | SHARP |
| Størrelse | 3.9 |
| Ansøgning | HHP |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 65 |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ039Q2DS51 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.9 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Reflective |
| aktivt område | 79.2×58.32 mm |
| omrids | 104.5×79.6 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 65 cd/m² (Typ.) |
| kontrastforhold | 5.5/4.5(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/35/35 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VSS) |
| Ansøgning | HHP |
