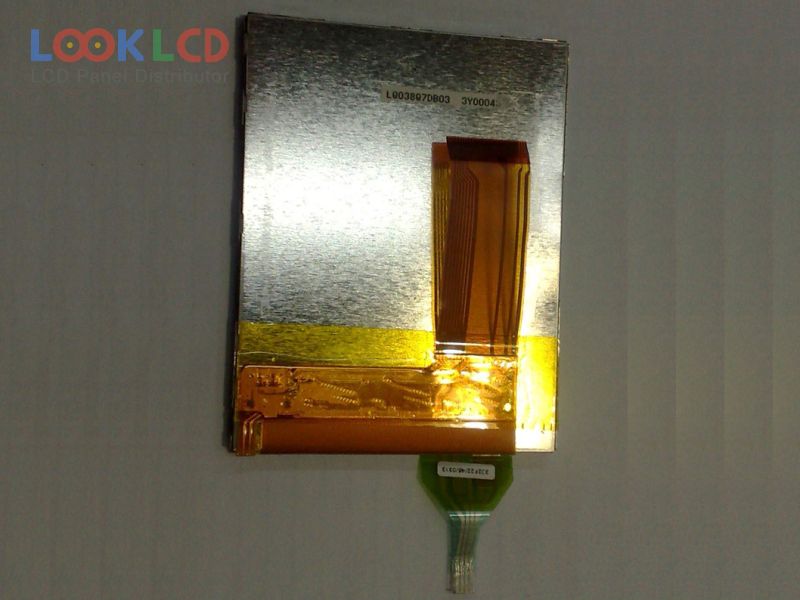

| Varenummer | LQ038Q7DB03 |
| Mærke | SHARP |
| Størrelse | 3.8 |
| Ansøgning | HHP |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 90 |
| CR | 75:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ038Q7DB03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.8 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 57.6×76.8 mm |
| omrids | 69×88.6 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 90 cd/m² (Typ.) |
| kontrastforhold | 75:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/40/40 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 61 pins |
| indgangsspænding | 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VSS) |
| Ansøgning | HHP |
| KHS038AA1AA-B70R-57-11 | Kyocera | 3.8 | 240×320 |
| LQ038B3DD01 | SHARP | 3.8 | 320×480 |
| LQ038B7DB01 | SHARP | 3.8 | 320×480 |
| LQ038J7DH52 | SHARP | 3.8 | 320×480 |
| LQ038Q5DR01 | SHARP | 3.8 | 320×240 |
| LQ038Q7DB03 | SHARP | 3.8 | 240×320 |
| LQ038Q7DB03A | SHARP | 3.8 | 240×320 |
| LQ038Q7DB03R | SHARP | 3.8 | 240×320 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| 24QVW2H | SII | 2.4 | 240×320 |
| AM-240320-022F | Other | 2.2 | 240×320 |
| DLC0090AZG | Other | 0.91 | 80×160 |
| DLC0200EUG | Other | 2.0 | 240×320 |
| LM038QC1R10 | SHARP | 3.8 | 320×240 |
| LQ035Q7DB02R | SHARP | 3.5 | 240×320 |
| LQ040Y3DX80 | SHARP | 4.0 | 480×800 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| LS013B4DN04 | SHARP | 1.35 | 96×96 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
