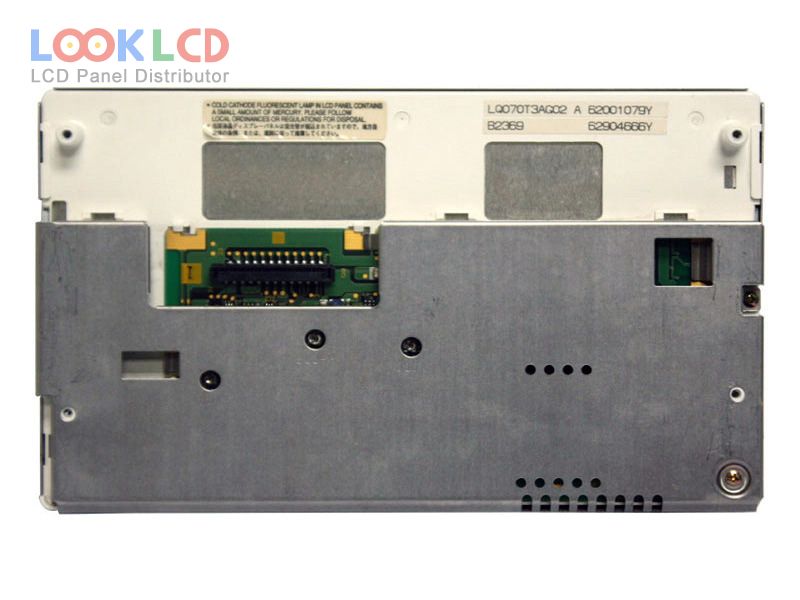

| Varenummer | LQ070T3AG02 |
| Mærke | SHARP |
| Størrelse | 7.0 |
| Ansøgning | VDP |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 60:1 |
| Farver | Full color |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | SHARP |
| panel model | LQ070T3AG02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 480(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 155.52×87.75 mm |
| omrids | 176.5×107.5 mm |
| overflade | |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 60:1 (Min.) |
| vise farver | Full color |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | 1 pcsCCFLEmbedded (Inverter) |
| signal interface | Analog RGB + Composite Video (NTSC/PAL), 24 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | VDP |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5BG01 | SHARP | 7.0 | 480×234 |
| LQ070T5DG01 | SHARP | 7.0 | 854×480 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| LQ070T5DR02 | SHARP | 7.0 | 480×240 |
| LQ070Y1LG12 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG36 | SHARP | 7.0 | 800×480 |
| A056DN01 V2 | AUO | 5.6 | 320×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| PW056XU1 | E Ink | 5.5 | 480×234 |
| PW070DS1T1 | E Ink | 7.0 | 480×234 |
