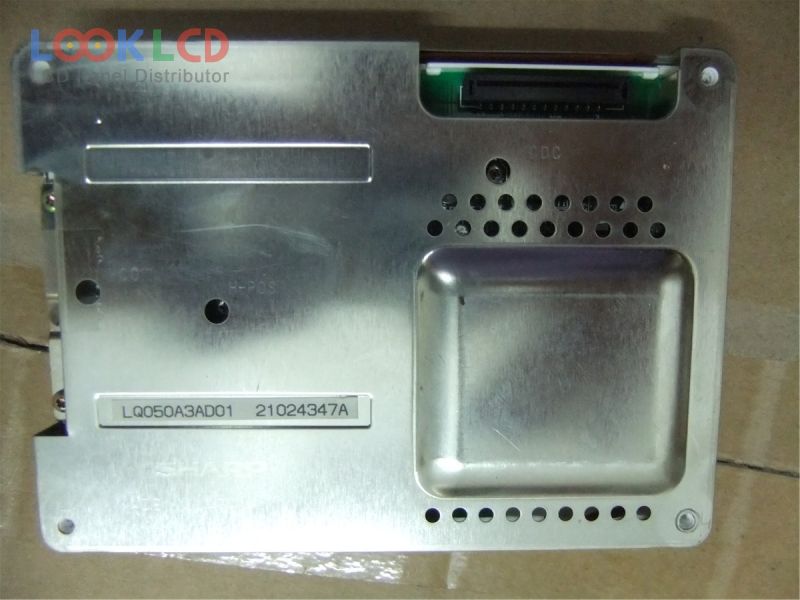

| Varenummer | LQ050A3AD01 |
| Mærke | SHARP |
| Størrelse | 5.0 |
| Ansøgning | VDP |
| Løsning | 320×234 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 100:1 |
| Farver | Full color |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | SHARP |
| panel model | LQ050A3AD01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 320(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 102.2×74.8 mm |
| omrids | 127.5×90.3×20 mm |
| overflade | |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 100:1 (Min.) |
| vise farver | Full color |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLEmbedded (Inverter) |
| signal interface | Analog RGB + Composite Video (NTSC/PAL), 24 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | VDP |
