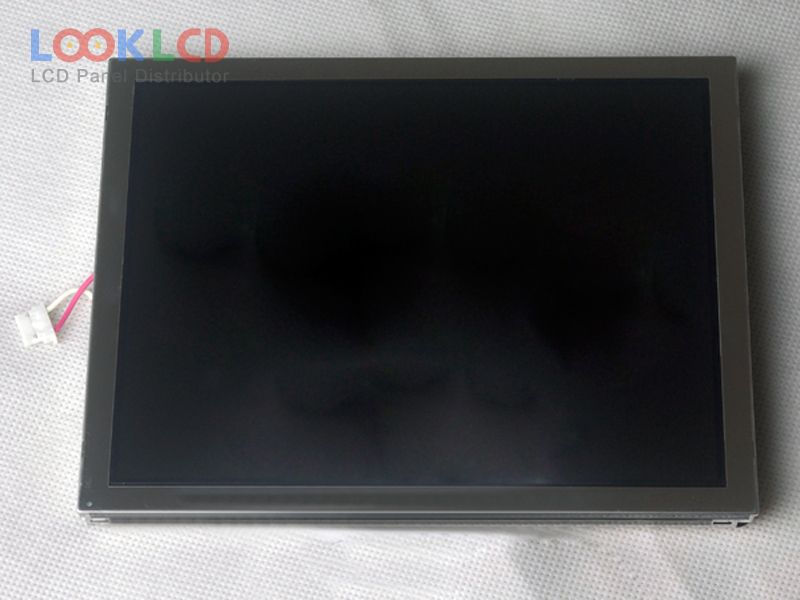

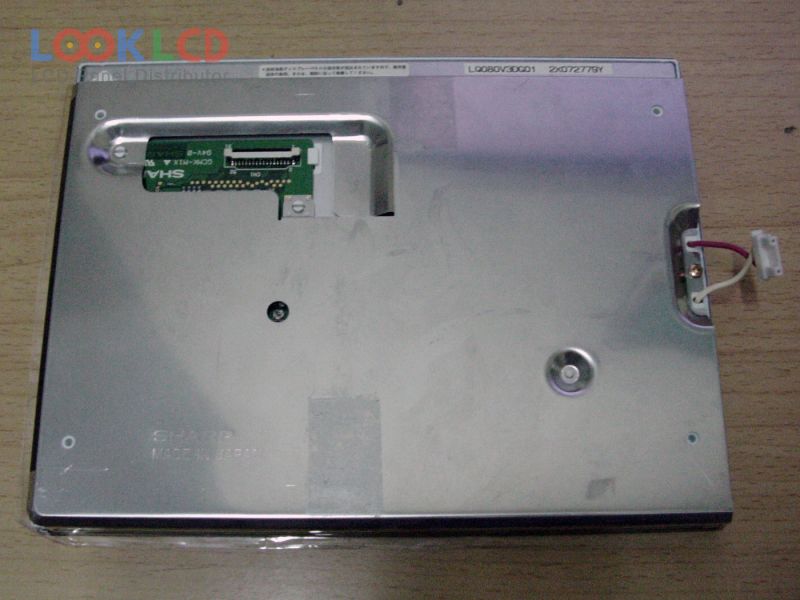

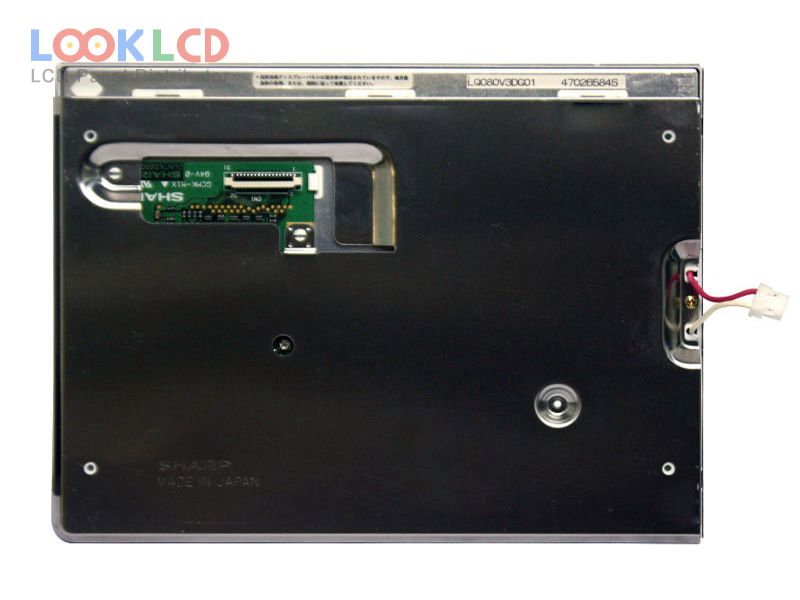

| Varenummer | LQ080V3DG01 |
| Mærke | SHARP |
| Størrelse | 8.0 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 380 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ080V3DG01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 162.24×121.68 mm |
| omrids | 183×141 mm |
| overflade | Antiglare, Antireflection |
| lysstyrke | 380 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 32 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VCC) |
| Ansøgning | IA |
