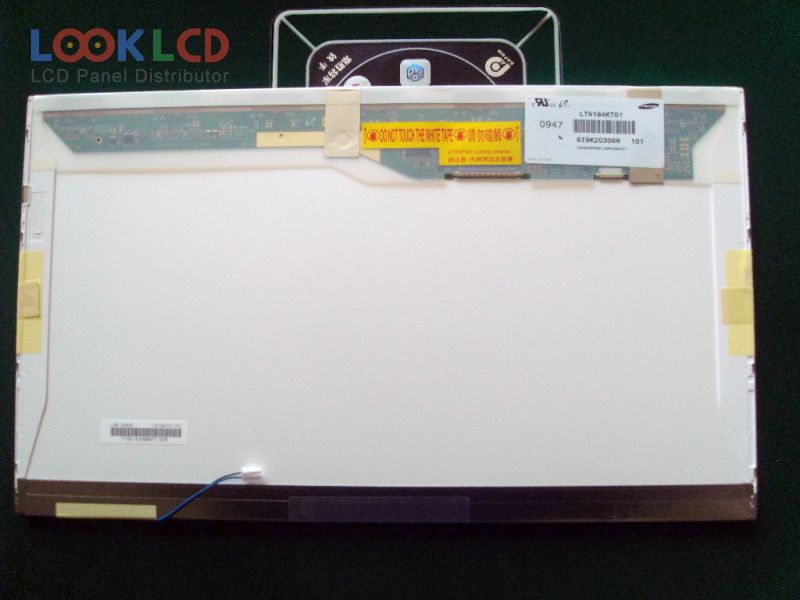

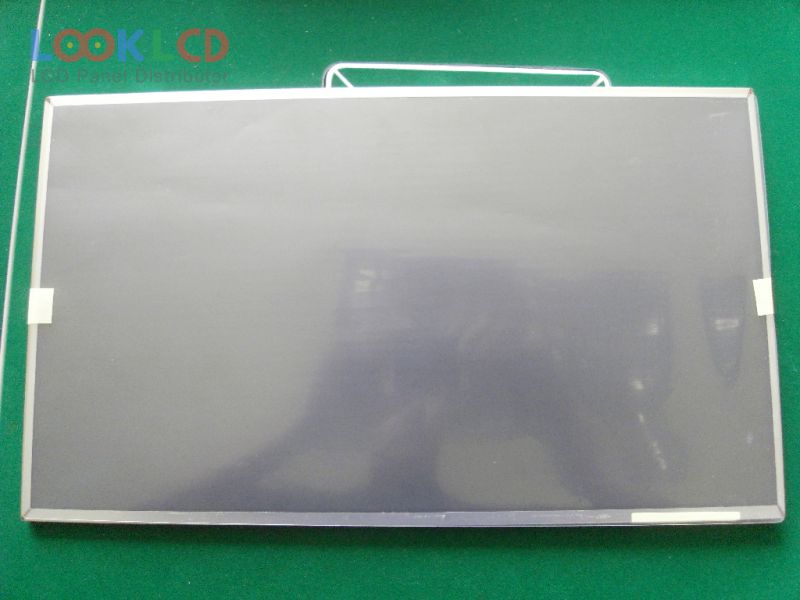

| Varenummer | LTN184KT01-101 |
| Mærke | Samsung |
| Størrelse | 18.4 |
| Ansøgning | NBPC |
| Løsning | 1680×945 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN184KT01-101 4 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 18.4 inch |
| løsning | 1680(RGB)×945 , HD+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 408.24×229.635 mm |
| omrids | 422.5×246×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
