| Varenummer | LTZ320AB02 |
| Mærke | Samsung |
| Størrelse | 31.5 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 3000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |

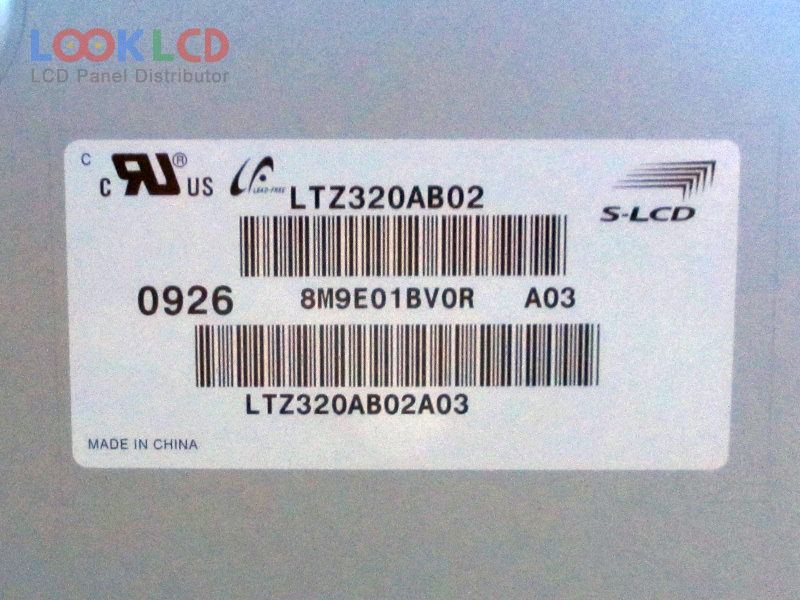

| panel model | LTZ320AB02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 31.5 inch |
| løsning | 1366×768(RGB) , WXGA |
| visningstilstand | S-PVA, Normally Black, Transmissive |
| aktivt område | 697.685×392.256 mm |
| omrids | 760×450 mm |
| overflade | Antiglare (Haze 14%), Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 3000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 9/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 41 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
