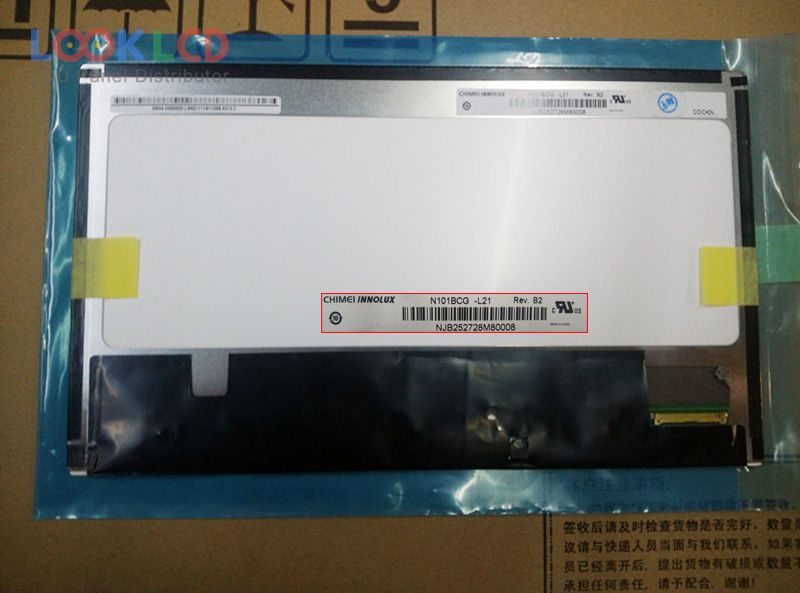

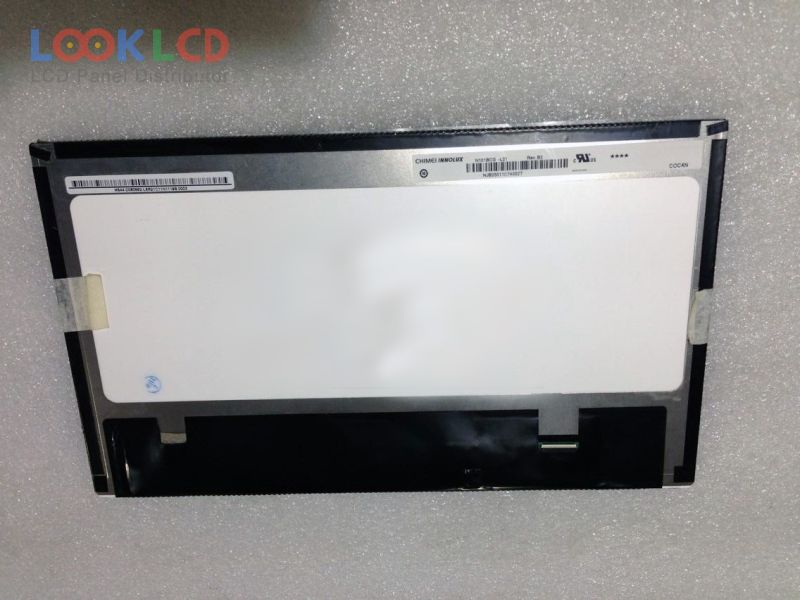

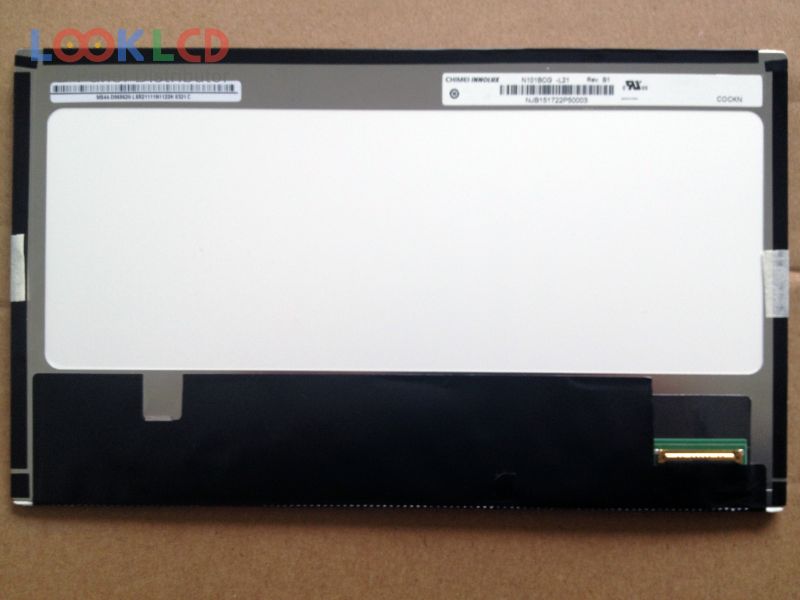

| Varenummer | N101BCG-L21 |
| Mærke | Innolux |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |
| panel model | N101BCG-L21 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 222.52×125.11 mm |
| omrids | 233.8×138.5×4.7 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 13/12 (Typ.)(Tr/Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 11S3PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 39 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| B101AW06 V1 HW0A | AUO | 10.1 | 1024×600 |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| EJ101IA-01G | Innolux | 10.1 | 1280×800 |
| LD101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| N101BCG-L21 | Innolux | 10.1 | 1366×768 |
| N101BGE-L21 | Innolux | 10.1 | 1366×768 |
| N101BGE-L31 | Innolux | 10.1 | 1366×768 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| CLAA100XA22XV | CPT | 10.0 | 1024×768 |
| HSD100PXN1-A00 | HannStar | 10.0 | 1024×768 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LP097X02-SLQA | LG Display | 9.7 | 1024×768 |
| LP125WH2-SPM2 | LG Display | 12.5 | 1366×768 |
| LT070ME05000 | JDI | 7.0 | 1200×1920 |
