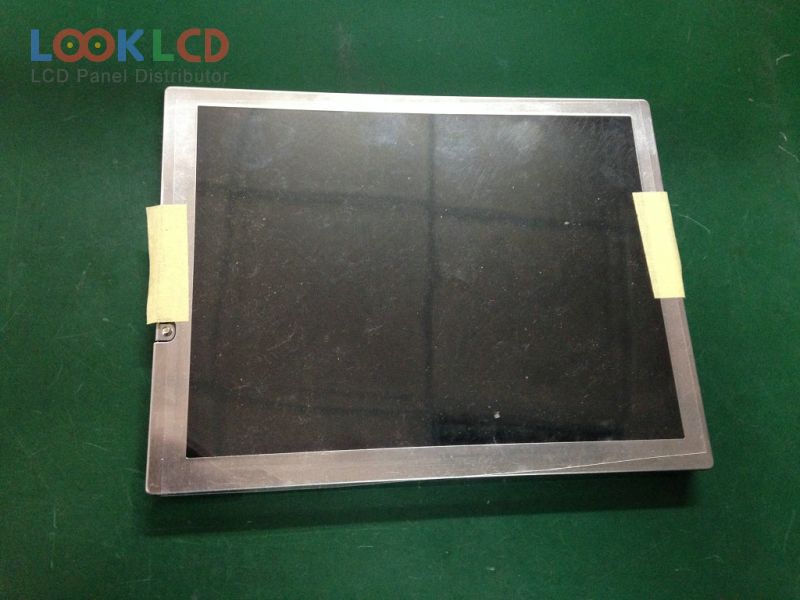

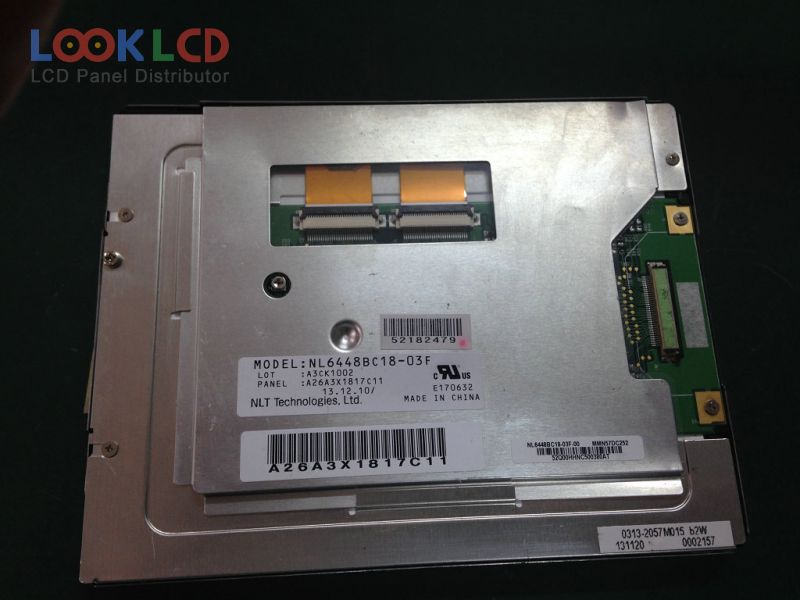

| Varenummer | NL6448BC18-03F |
| Mærke | NLT |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 800 |
| CR | 850:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL6448BC18-03F 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 116.16×87.12 mm |
| omrids | 135×104.6×10.9 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 800 cd/m² (Typ.) |
| kontrastforhold | 850:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 3/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S2P×2CNWLEDWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 33 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
