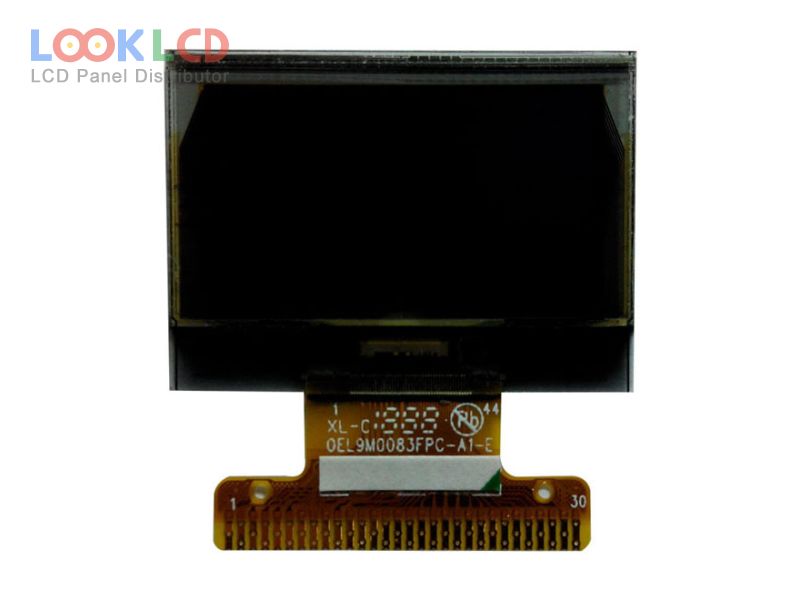

| Varenummer | OEL9M0083-Y-E |
| Mærke | Other |
| Størrelse | 0.96 |
| Ansøgning | |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | |
| CR | 10000:1 |
| Farver | Mono(Yellow) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | TRULY |
| panel model | OEL9M0083-Y-E |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 0.96 inch |
| løsning | 128×64 |
| aktivt område | 21.74×11.175 mm |
| omrids | 26.7×19.26×1.65 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 10000 : 1 (Min.) |
| vise farver | Mono(Yellow) (1-bit) |
| synsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvens | 100Hz |
| driver ic | COG Built-in SH1106G |
| signal interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
