| Varenummer | OEL9M0039-R-E |
| Mærke | Other |
| Størrelse | 1.5 |
| Ansøgning | MPH |
| Løsning | 128×128 |
| Sammensætning | OLED |
| Lysstyrke | |
| CR | 10000:1 |
| Farver | Grayscale(R) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |

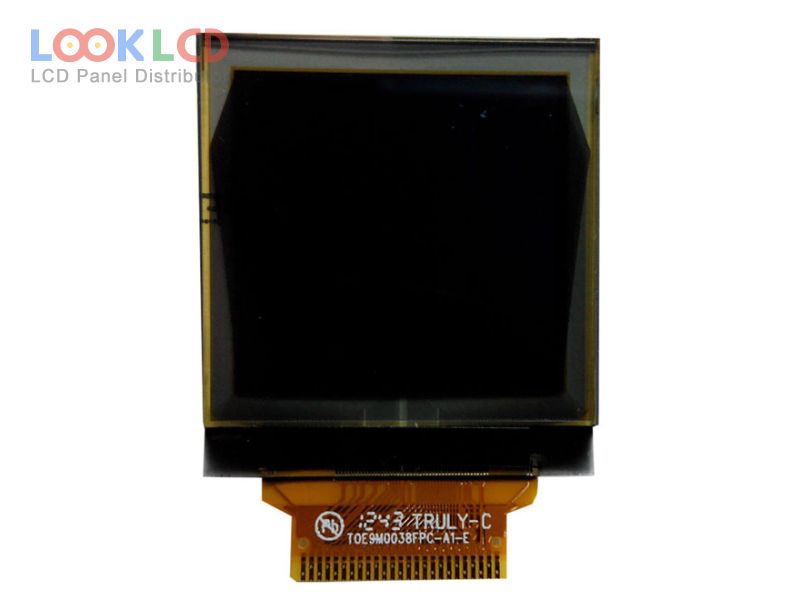

| panel mærke | TRULY |
| panel model | OEL9M0039-R-E |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 1.5 inch |
| løsning | 128×128 |
| aktivt område | 26.86×26.86 mm |
| omrids | 34.9×37.8×1.6 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 10000 : 1 (Min.) |
| vise farver | Grayscale(R) (4-bit) |
| synsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvens | 100Hz |
| driver ic | COG Built-in SSD1329Z |
| signal interface | 8-bit 6800/8080 parallel, SPI, 25 pins |
| indgangsspænding | 3.0/3.0/15.0V (Typ.)(VDD/VDDIO/VCC) |
| Ansøgning | MPH |
