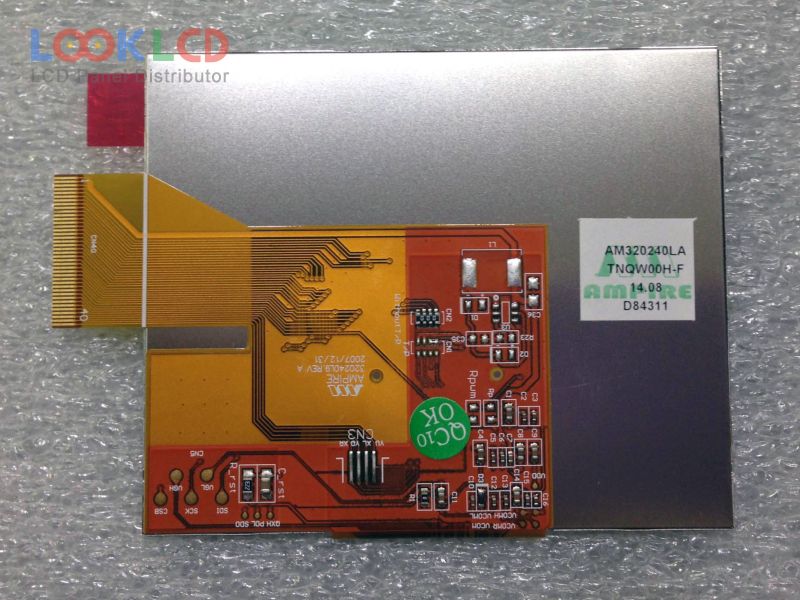

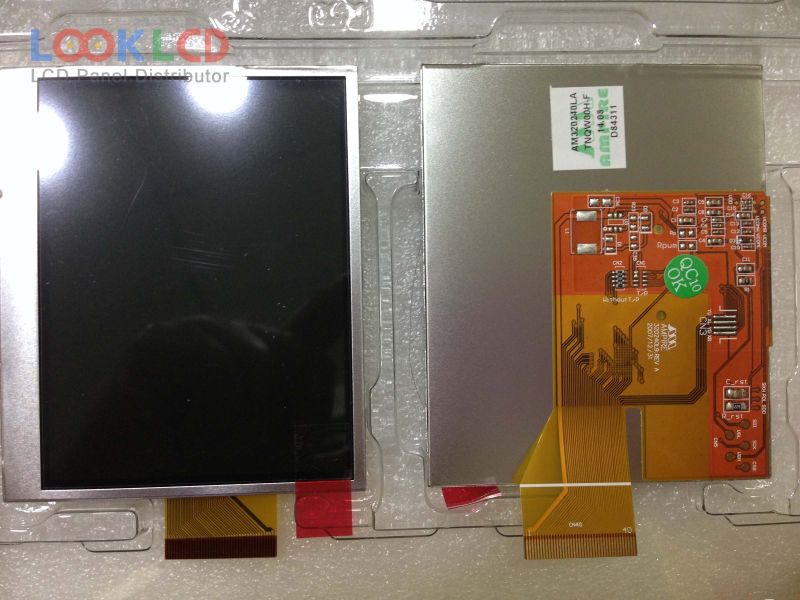

| Varenummer | AM-320240LATNQW-T00H-F |
| Mærke | AMPIRE |
| Størrelse | 3.5 |
| Ansøgning | HHP |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AMPIRE |
| panel model | AM-320240LATNQW-T00H-F |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.08×52.56 mm |
| omrids | 77.8×66×5.8 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 50 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | HHP |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| AM-320480-035BT | Other | 3.5 | 320×480 |
| AMS347FF02 | Samsung | 3.5 | 360×640 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| 30WQF0H | SII | 3.0 | 240×400 |
| COM24H2N62XLC | ORTUSTECH | 2.4 | 240×320 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LQ030B7DD01 | SHARP | 3.0 | 320×320 |
| LQ039Q2DS51 | SHARP | 3.9 | 320×240 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| LS029B4DN01 | SHARP | 2.9 | 240×456 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TM030LDHT1 | Tianma | 3.0 | 240×400 |
| TM035NDH04 | Tianma | 3.5 | 272×480 |
