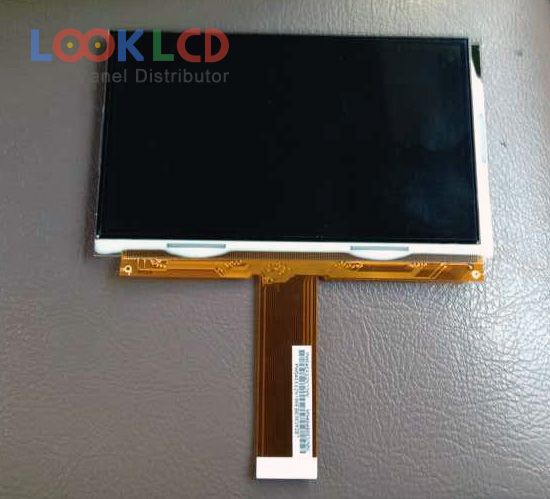

| Varenummer | PW045XS2 |
| Mærke | E Ink |
| Størrelse | 4.5 |
| Ansøgning | VOIP |
| Løsning | 320×234 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 350:1 |
| Farver | Full color |
| Baggrundsbelysning | No B/L |
| Interface | Analog |
| panel mærke | PVI |
| panel model | PW045XS2 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 4.5 inch |
| løsning | 320(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 99.6×56 mm |
| omrids | 108.4×66 mm |
| overflade | Antiglare |
| glas dybde | 0.70+0.70 mm |
| transmissivitet | 8.5% (Typ.)(with Polarizer) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | Full color |
| responstid | 15/30 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | TFT Specific Analog RGB, 30 pins |
| indgangsspænding | 3.3/5.0/5.0/17.0/-12.0V (Typ.)(VDD1/VDD2/VCC/VGH/VGL) |
| Ansøgning | VOIP |
| BTL455496-W613L | BOE | 4.5 | 540×960 |
| BV045WVM-N00 | BOE | 4.5 | 480×800 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LH450WX1-SD01 | LG Display | 4.5 | 720×1280 |
| LH450WX3-SD01 | LG Display | 4.5 | 720×1280 |
| LT044MDW7000 | TOSHIBA | 4.5 | 720×1280 |
| PJ045IC-01F | Innolux | 4.5 | 720×1280 |
| PW045XS1 | E Ink | 4.5 | 320×234 |
| PW045XS2 | E Ink | 4.5 | 320×234 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
| AT056TN04 V.6 | Innolux | 5.6 | 320×234 |
| PW036XS3 | E Ink | 3.6 | 320×234 |
| PW045XS1 | E Ink | 4.5 | 320×234 |
| PW045XS2 | E Ink | 4.5 | 320×234 |
| TM050QDH01 | Tianma | 5.0 | 640×480 |
| TM050QDH11 | Tianma | 5.0 | 640×480 |
| ZJ050NA-08C | Innolux | 5.0 | 640×480 |
