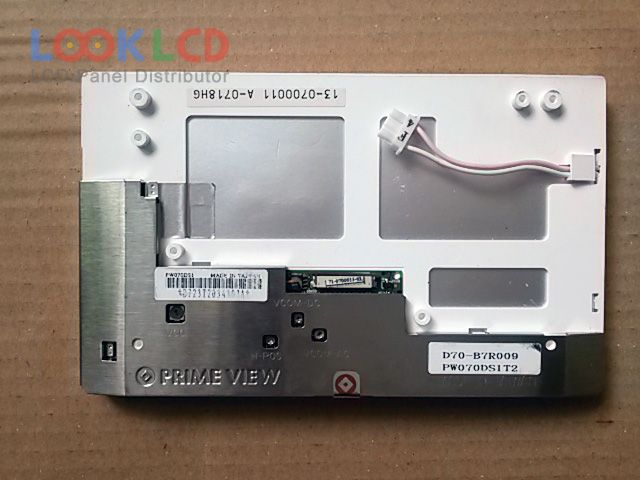

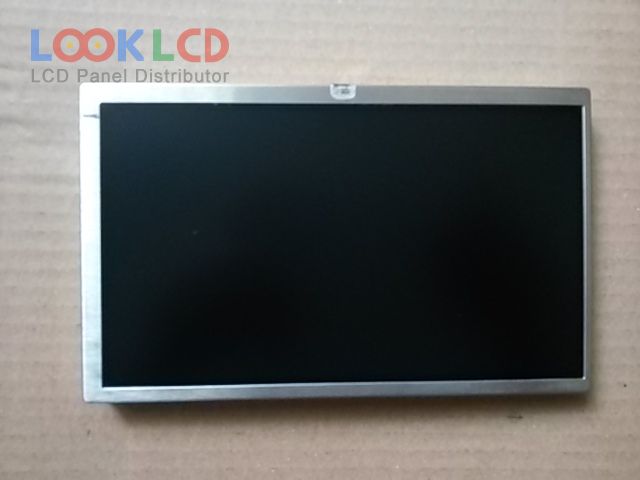

| Varenummer | PW070DS1T2 |
| Mærke | E Ink |
| Størrelse | 7.0 |
| Ansøgning | VDP |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 150:1 |
| Farver | |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | PVI |
| panel model | PW070DS1T2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 480(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×87.05 mm |
| omrids | 166.9×101.8 mm |
| overflade | Antiglare, Hard coating |
| lysstyrke | |
| kontrastforhold | 150:1 (Typ.) |
| vise farver | |
| responstid | 30/50 (Max.)(Tr/Td) |
| synsvinkel | 55/55/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| rohs: | |
| Ansøgning | VDP |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| LTP700WV-F01 | Samsung | 7.0 | 800×480 |
| PM070WL3 | E Ink | 7.0 | 800×480 |
| PW070DS1T1 | E Ink | 7.0 | 480×234 |
| PW070DS1T2 | E Ink | 7.0 | 480×234 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
| PW070NS1W2 | E Ink | 7.0 | 480×320 |
| PW070XU3 | E Ink | 7.0 | 480×234 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| Q070LRE-LB1 | Innolux | 7.0 | 1024×600 |
| A040CN01 V2 | AUO | 4.0 | 480×234 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| LB065W01-B11B | LG Display | 6.5 | 400×234 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5BG01 | SHARP | 7.0 | 480×234 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| LTA065B096D | TOSHIBA | 6.5 | 400×234 |
