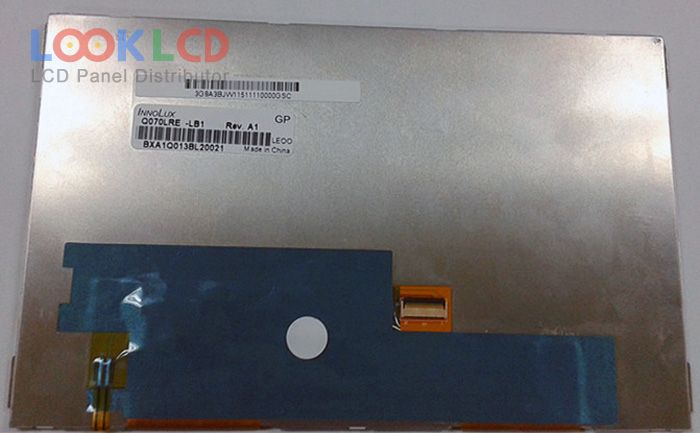

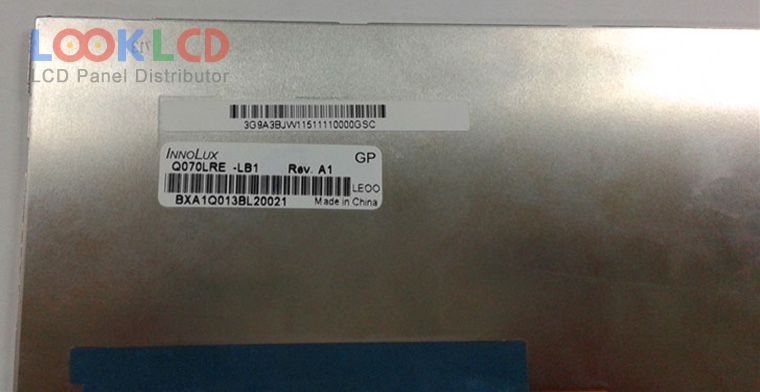

| Varenummer | Q070LRE-LB1 |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |
| panel model | Q070LRE-LB1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 164.1×102.6×3.25 mm |
| overflade | Glare (Haze 0%) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S5PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 31 pins |
| indgangsspænding | 3.7V (Typ.) |
| Ansøgning | PAD |
