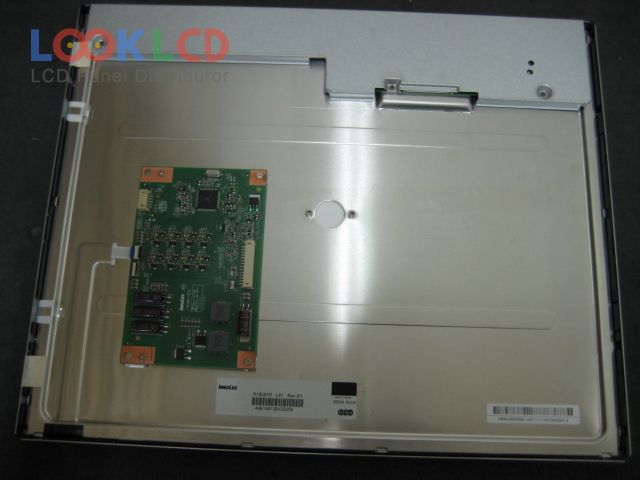

| Varenummer | R190EFE-L61 |
| Mærke | Innolux |
| Størrelse | 19.0 |
| Ansøgning | MD |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 650 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | INNOLUX |
| panel model | R190EFE-L61 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.0 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | DD-IPS, Normally Black, Transmissive |
| aktivt område | 376.32×301.06 mm |
| omrids | 396×324×20.7 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 650 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 15/15 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | MD |
| G190ETN01.4 | AUO | 19.0 | 1280×1024 |
| HSD190MEN3-A00 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN6-A01 | HannStar | 19.0 | 1280×1024 |
| LM190E08-TLJ7 | LG Display | 19.0 | 1280×1024 |
| LM190WX1-TLL1 | LG Display | 19.0 | 1440×900 |
| M190EG01 V2 | AUO | 19.0 | 1280×1024 |
| R190E5-L01 | Innolux | 19.0 | 1280×1024 |
| R190E6-L01 | Innolux | 19.0 | 1280×1024 |
| R190EFE-L51 | Innolux | 19.0 | 1280×1024 |
| R190EFE-L61 | Innolux | 19.0 | 1280×1024 |
| HV208QX1-100 | HYDIS | 20.8 | 2048×1536 |
| ITQX21G | IDTech | 20.8 | 2048×1536 |
| LAM170M023A | JDI | 17.0 | 1280×1024 |
| LB190E01-SL01 | LG Display | 19.0 | 1280×1024 |
| LQ201U1LW11Z | SHARP | 20.1 | 1600×1200 |
| LQ201U1LW31 | SHARP | 20.1 | 1600×1200 |
| NL160120BM27-03A | NLT | 21.3 | 1600×1200 |
| R190E6-L01 | Innolux | 19.0 | 1280×1024 |
| R190EFE-L51 | Innolux | 19.0 | 1280×1024 |
| VVX21F136J00 | Panasonic | 21.3 | 1600×1200 |
