| Varenummer | R196U2-L01 |
| Mærke | Innolux |
| Størrelse | 19.6 |
| Ansøgning | MD |
| Løsning | 1600×1200 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 600:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |

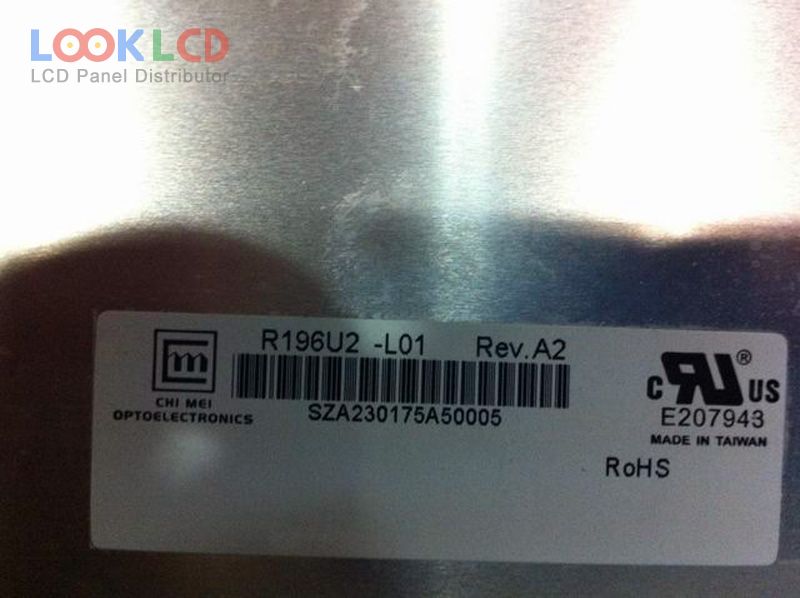

| panel model | R196U2-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.6 inch |
| løsning | 1600(RGB)×1200 , UXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 398.4×298.8 mm |
| omrids | 427×322.4×38.3 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 25/25 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 16 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8-bit), 40 pins |
| indgangsspænding | 12.0V (Typ.) |
| rohs: | |
| Ansøgning | MD |
| LQ201U1LW18 | SHARP | 20.1 | 1600×1200 |
| NL160120AC27-37 | NLT | 21.3 | 1600×1200 |
| NL204153AC21-09 | NLT | 21.3 | 2048×1536 |
| NL204153BM21-05A | NLT | 21.3 | 2048×1536 |
| R190EFE-L61 | Innolux | 19.0 | 1280×1024 |
| R196U2-L01 | Innolux | 19.6 | 1600×1200 |
| R208RFE-L05 | Innolux | 20.8 | 2048×1536 |
| R300M1-L01 | Innolux | 30.0 | 4096×2560 |
| R300SFE-L02 | Innolux | 30.0 | 3280×2048 |
| VVX21F136J00 | Panasonic | 21.3 | 1600×1200 |
