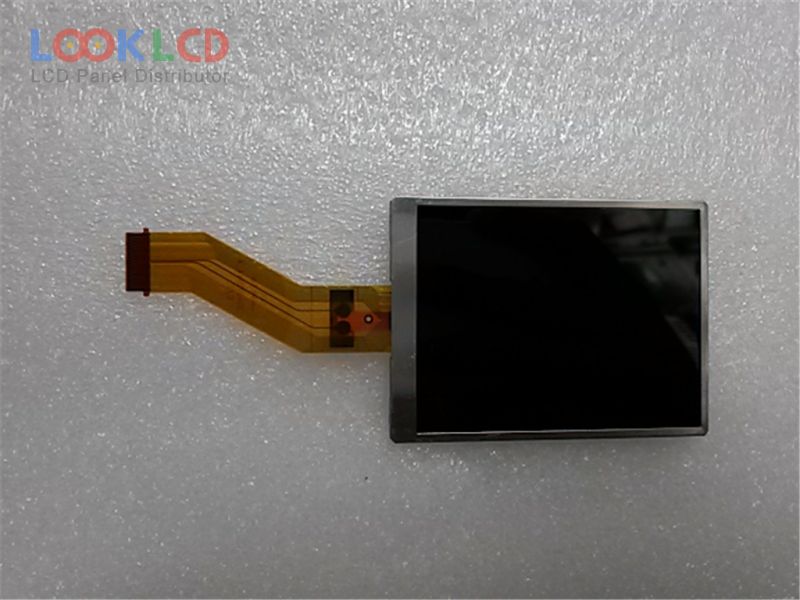

| Varenummer | TD030MHEB3 |
| Mærke | TPO |
| Størrelse | 3.0 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 270:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | TPO |
| panel model | TD030MHEB3 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White |
| aktivt område | 60.3×45 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 270 : 1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 30/10 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | WLED |
| signal interface | Serial RGB (8-bit) + SPI, 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| rohs: | |
| Ansøgning | DSC |
