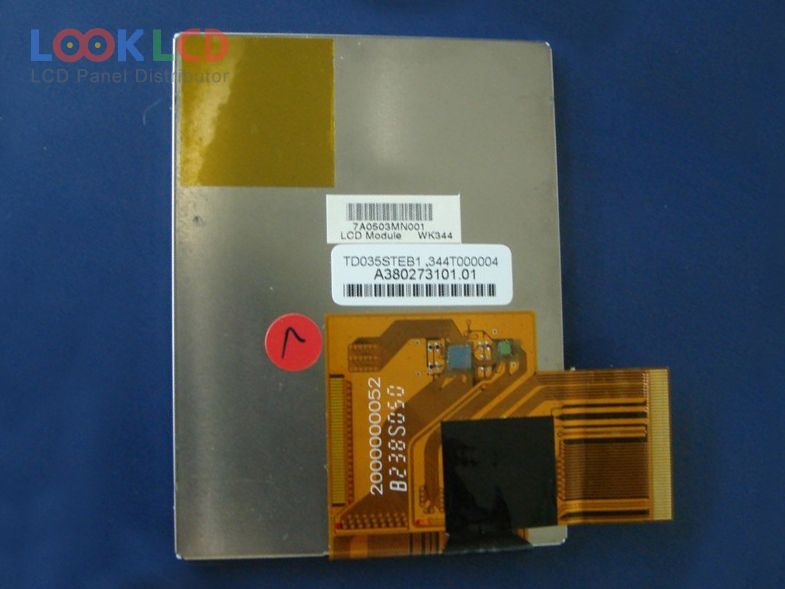

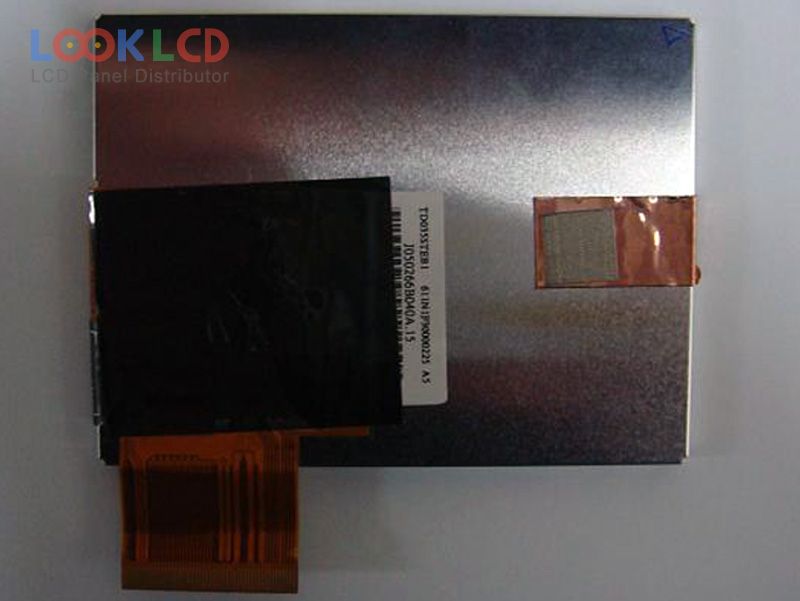

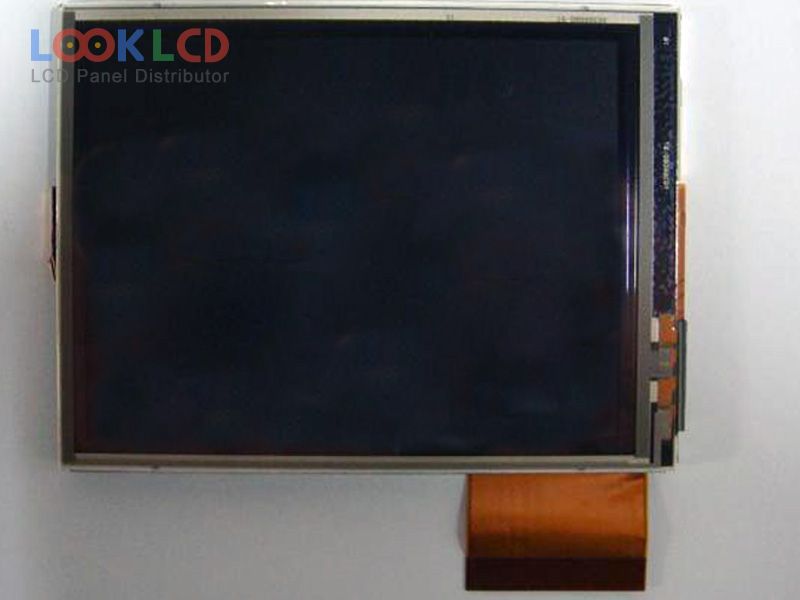

| Varenummer | TD035STEB1 |
| Mærke | TPO |
| Størrelse | 3.5 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 80:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | Toppoly |
| panel model | TD035STEB1 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 53.64×71.52 mm |
| omrids | 64×85×4.9 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 80:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193139% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 45/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3/4.5/11.1/-7V (Typ.)(VCC3/VCC5/VDD/VEE) |
| Ansøgning | MPH |
