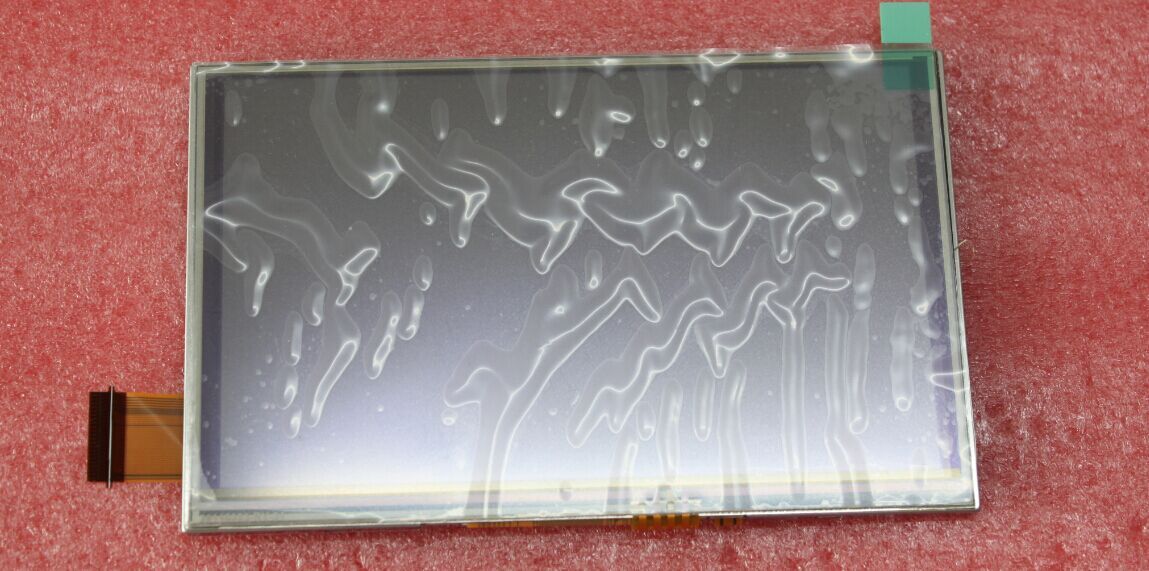

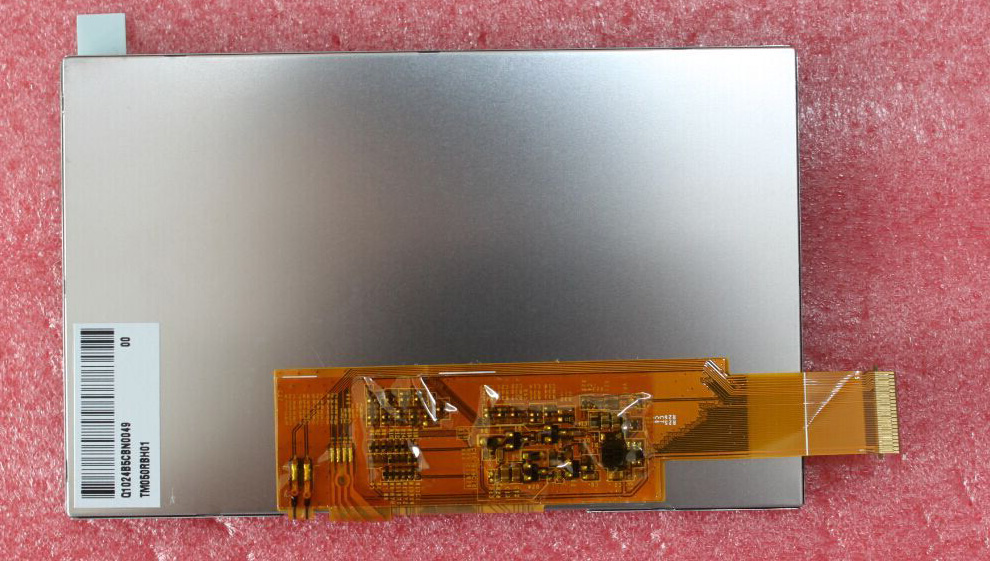

| Varenummer | TM050RBH01-00 |
| Mærke | TIANMA |
| Størrelse | 5.0 |
| Ansøgning | Industrial Portable |
| Løsning | 800×480 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 450:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel |
| mærke | TIANMA |
| model | TM050RBH01-00 |
| diagonal størrelse | 5.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 800(RGB)×480 [WVGA] 188PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 108(H)×64.8(V) mm |
| omrids dim. | 120.7(H)×75.8(V) ×6.3(D) mm |
| bezel område | - |
| behandling | Antiglare, Hard coating (3H) |
| luminans | 300 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) (TM) |
| visningsretning | 12 o'clock |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10) |
| driftstilstand | TN, Normally White, Transmissive |
| støtte farve | 16.7M 50% NTSC |
| lyskilde | WLED [6S3P] , 20K hours , W/O Driver |
| vægt | 76.3g |
| designet til | Industrial Portable Navigation MID UMPC MP3 PMP |
| billedhastighed | 60Hz |
| berøringspanel | 4-wire Resistive Touch |
| interface type | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| A050VVN01.0 | AUO | 5.0 | 480×800 |
| C050FTN01.0 | AUO | 5.0 | 480×234 |
| DLC0500HZG-T-8 | Other | 5.0 | 800×480 |
| EJ050NA-01D | Innolux | 5.0 | 800×480 |
| H497TLB01.4 | AUO | 5.0 | 720×1280 |
| LD050WV1-SP01 | LG Display | 5.0 | 480×800 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LQ050T5DW02 | SHARP | 5.0 | 400×240 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
