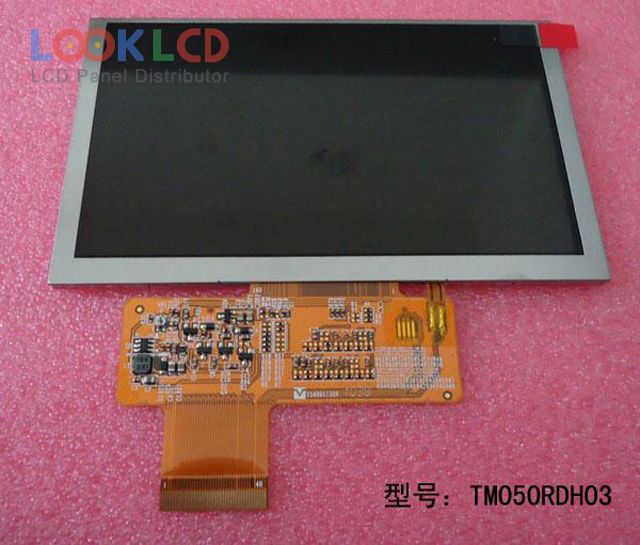

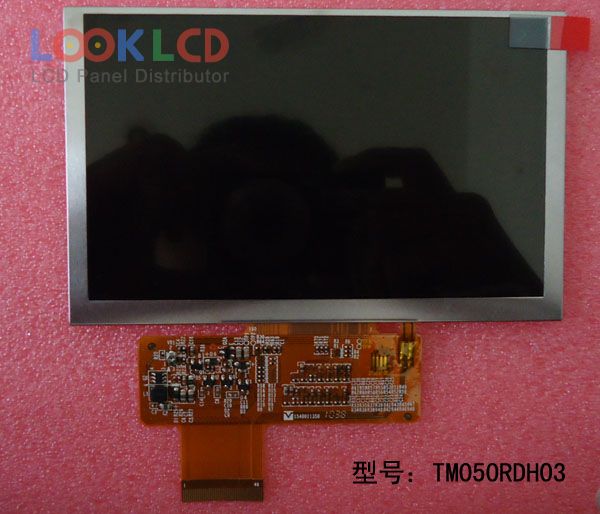

| Varenummer | TM050RDH03 |
| Mærke | Tianma |
| Størrelse | 5.0 |
| Ansøgning | PND |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 600:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM050RDH03 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 108×64.8 mm |
| omrids | 120.7×75.8×3.1 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PND |
