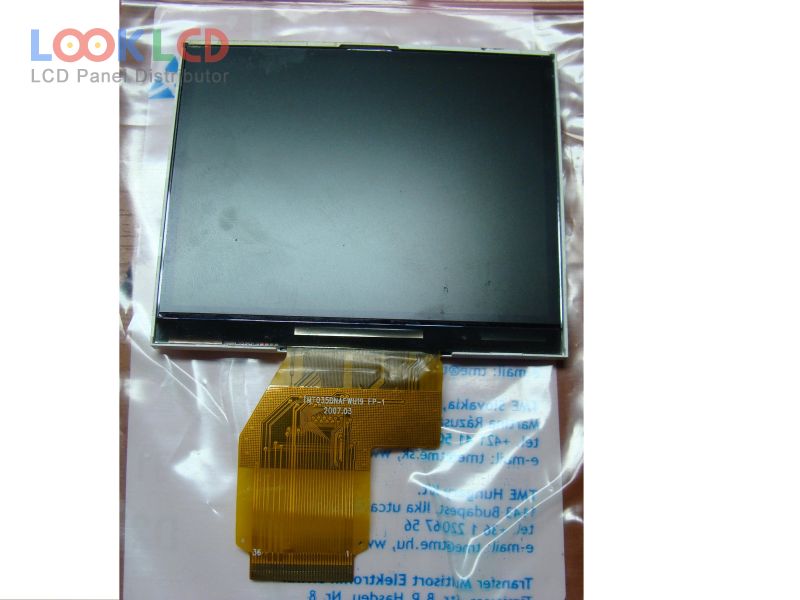

| Varenummer | TMT035DNAFWU19 |
| Mærke | Tianma |
| Størrelse | 3.5 |
| Ansøgning | PND |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | TIANMA |
| panel model | TMT035DNAFWU19 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.08×52.56 mm |
| omrids | 76.9×63.9×3.35 mm |
| overflade | Antiglare |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/25 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |

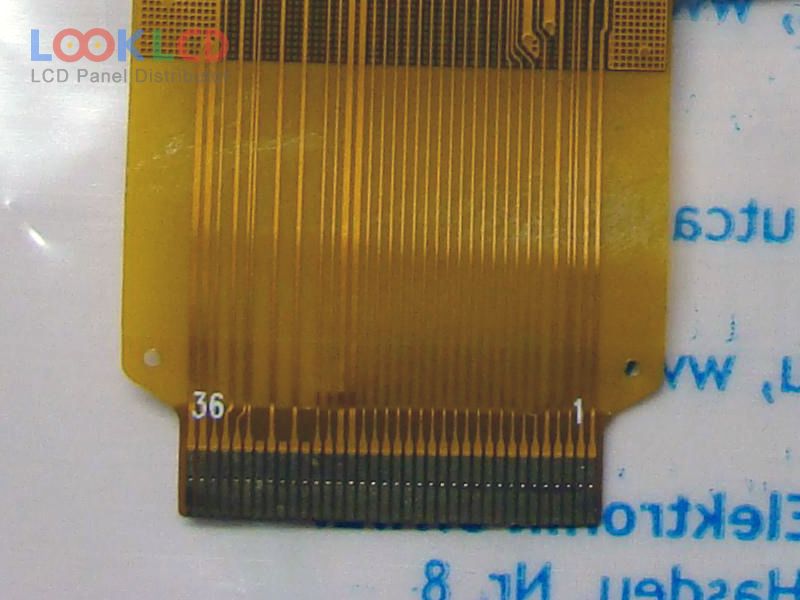

| signal interface | Serial RGB (8-bit) + SPI, CCIR601/656, 36 pins |
| indgangsspænding | 3.3/5.0/15.4/-7.7V (Typ.)(VCC/VDD/VGH/VGL) |
| Ansøgning | PND |
| A035QN05 V1 | AUO | 3.5 | 320×240 |
| AMS347FF01 | Samsung | 3.5 | 360×640 |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| LMS350DF03 | Samsung | 3.5 | 320×480 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| PA035XSL | E Ink | 3.5 | 320×234 |
| S035V01 | CDTECH | 3.5 | 480×640 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| TMT035DNAFWU19 | Tianma | 3.5 | 320×240 |
| 43WVF0H | SII | 4.3 | 800×480 |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| DLC0430LZG-6 | Other | 4.3 | 480×272 |
| DLC0500EZG-T-6 | Other | 5.0 | 800×480 |
| LMS500HF01 | Samsung | 5.0 | 480×272 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| P0430WQLC-T | CMEL | 4.3 | 480×272 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| TS40WD2B-03 | Other | 4.0 | 480×272 |
