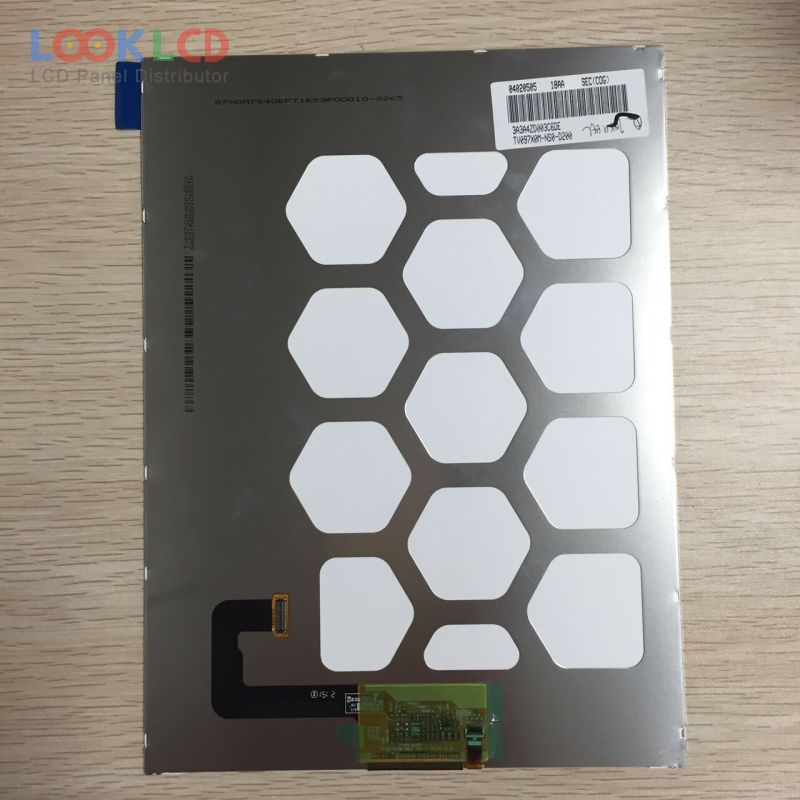

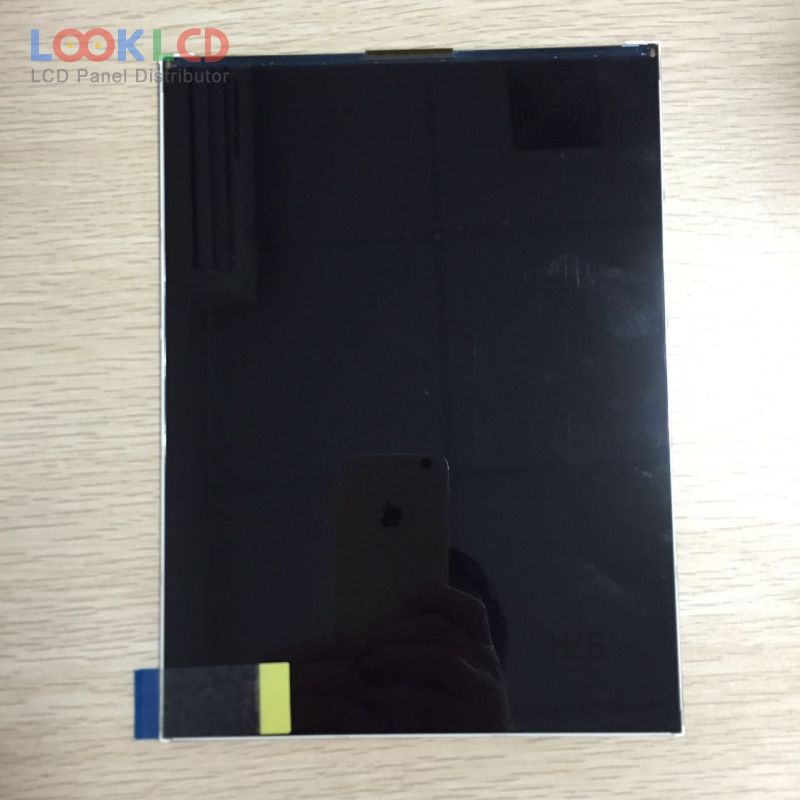

| Varenummer | TV097X0M-NS0 |
| Mærke | BOE |
| Størrelse | 9.7 |
| Ansøgning | PAD |
| Løsning | 768×1024 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | BOE |
| panel model | TV097X0M-NS0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.7 inch |
| løsning | 768(RGB)×1024 , XGA |
| visningstilstand | ADS, Normally Black, Transmissive |
| aktivt område | 147.456×196.608 mm |
| omrids | 153.716×207.838×3.21 mm |
| overflade | Hard coating, Antireflection |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193171% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S5PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 40 pins |
| indgangsspænding | 1.8/5.4/-5.4V (Typ.)(VDD3/VSP/VSN) |
| Ansøgning | PAD |
| AM-1024768M2TMQW-T00H | AMPIRE | 9.7 | 1024×768 |
| BF097XN | Innolux | 9.7 | 1024×768 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLA2 | LG Display | 9.7 | 1024×768 |
| LP097X02-SLG4 | LG Display | 9.7 | 1024×768 |
| LP097X02-SLQE | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| TV097X0M-NS0 | BOE | 9.7 | 768×1024 |
| A090PAN01.0 | AUO | 9.0 | 900×1440 |
| CLAP070WP03XG | CPT | 7.0 | 800×1280 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| LC104S1-A1 | LG Display | 10.4 | 800×600 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| Q101IRE-LA1 | Innolux | 10.1 | 1280×800 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
