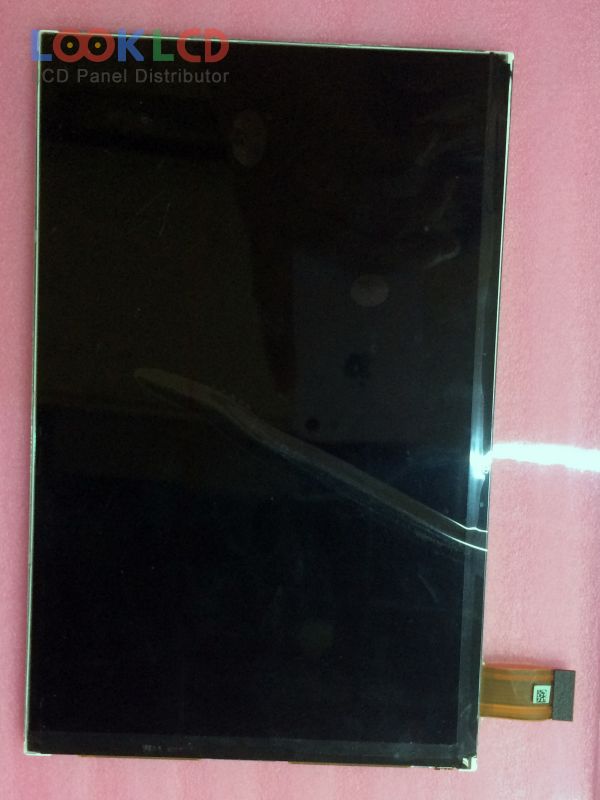

| Varenummer | VVX07H005A00 |
| Mærke | Panasonic |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 1000:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | Panasonic |
| panel model | VVX07H005A00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 94.2×150.72 mm |
| omrids | 104.32×161.67×3.8 mm |
| overflade | Hard coating |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30 (Max.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S5PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 34 pins |
| indgangsspænding | 1.8/3.3V (Typ.)(VCC/VDD) |
| Ansøgning | PAD |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AT070TN94 | Innolux | 7.0 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA070LC0FCT | CPT | 7.0 | 800×480 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| N070Y1-T01 | Innolux | 7.0 | 800×480 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
| VVX07H005A10 | Panasonic | 7.0 | 800×1280 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
| B101EAN01.3 | AUO | 10.1 | 1280×800 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HV101HD1-1E0 | HYDIS | 10.1 | 1366×768 |
| LD070WX5-SM01 | LG Display | 7.0 | 900×1440 |
| LP097X02-SLA3 | LG Display | 9.7 | 1024×768 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LP097X02-SLG4 | LG Display | 9.7 | 1024×768 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| YXD090TN02-40NM01 | SEBO | 9.0 | 1280×800 |
