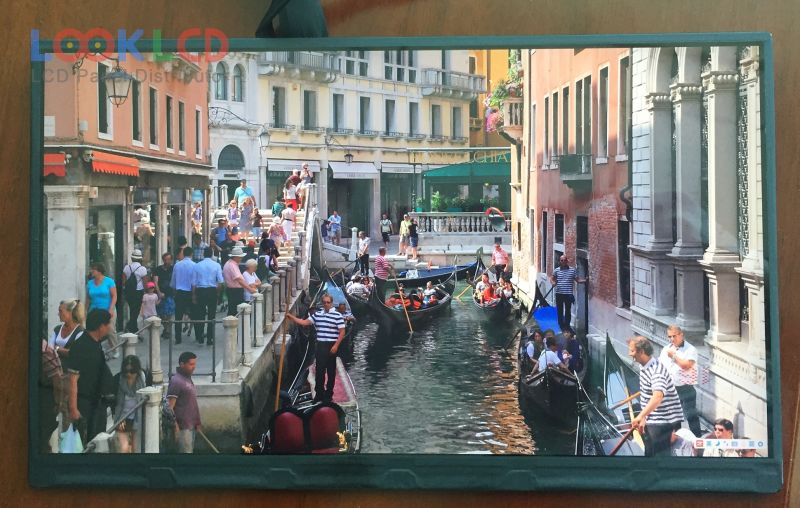

| Varenummer | TV101QUM-N00 |
| Mærke | BOE |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 3840×2160 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | BOE |
| panel model | TV101QUM-N00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 3840(RGB)×2160 , UHD |
| visningstilstand | ADS, Normally Black, Transmissive |
| aktivt område | 222.912×125.388 mm |
| omrids | 231.6×140.9 mm |
| overflade | |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 1500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE1931100% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S6PWLEDWithout Driver |
| signal interface | eDP (4 Lanes), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| B101AW01 V0 HW5A | AUO | 10.1 | 1024×576 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| LP101WSA-TLA1 | LG Display | 10.1 | 1024×600 |
| N101L6-L01 | Innolux | 10.1 | 1024×600 |
| TV101QUM-N00 | BOE | 10.1 | 3840×2160 |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| LP079X01-SMAV | LG Display | 7.9 | 768×1024 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTL120QL01-001 | Samsung | 12.0 | 2160×1440 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| TV096WXM-NS0 | BOE | 9.6 | 800×1280 |
