| Varenummer | TM097TDH01 |
| Mærke | Tianma |
| Størrelse | 9.7 |
| Ansøgning | PAD |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AVIC |
| panel model | TM097TDH01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.7 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 196.608×147.456 mm |
| omrids | 210.2×166.2×3.96 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S6PWLEDWithout Driver |

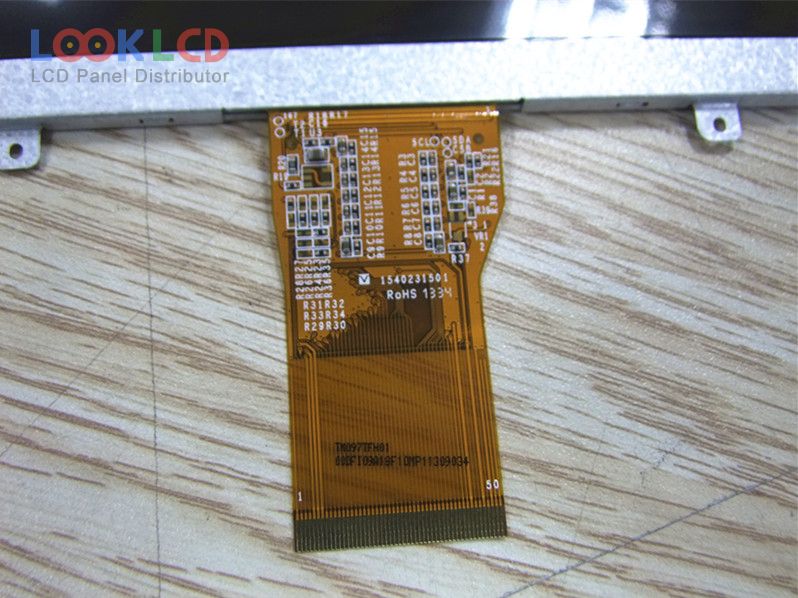

| signal interface | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| indgangsspænding | 3.3/12.5/22.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | PAD |
