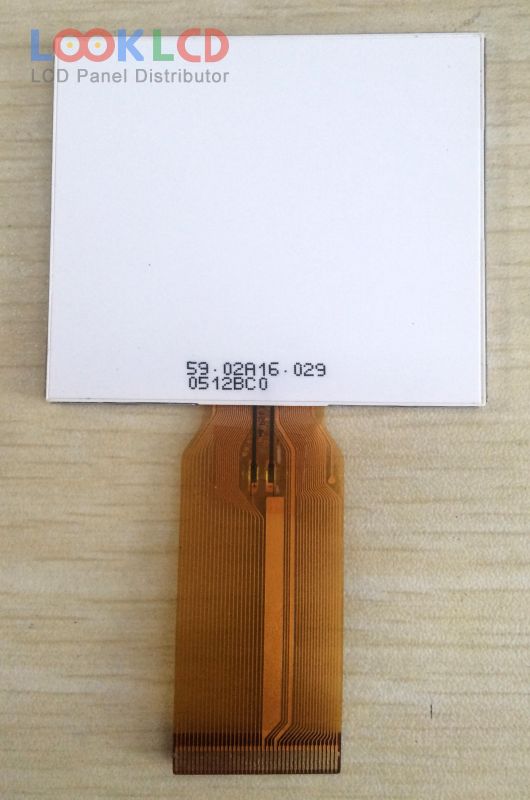

| Varenummer | A024CN02 VL |
| Mærke | AUO |
| Størrelse | 2.4 |
| Ansøgning | DSC |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 250:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | AUO |
| panel model | A024CN02 VL |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.4 inch |
| løsning | 480×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 48×35.685 mm |
| omrids | 55.2×47.55 mm |
| overflade | Hard coating |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 20/30 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, CCIR601/656, 40 pins |
| indgangsspænding | 3.3/3.3/3.3V (Typ.)(VCC/AVDD/PVDD) |
| Ansøgning | DSC |
| 24QVW2H | SII | 2.4 | 240×320 |
| A024CN02 VJ | AUO | 2.4 | 480×234 |
| A024CN02 VL | AUO | 2.4 | 480×234 |
| A024CN02 VR | AUO | 2.4 | 480×234 |
| A024CN03 V2 | AUO | 2.4 | 480×234 |
| DMC-16105NY-LY-ANN | Kyocera | 2.4 | 16×1 |
| LMS241GF31 | Samsung | 2.4 | 240×320 |
| LMS245DC08 | Samsung | 2.4 | 480×360 |
| PD024OX4 | E Ink | 2.4 | 480×234 |
| TM12864G3CCWGWA-1 | Tianma | 2.4 | 128×64 |
| 990000881 | TPO | 3.0 | 960×480(dot) |
| A030DN05 V0 | AUO | 3.0 | 320×240 |
| LH250Q01-TH02 | LG Display | 2.5 | 320×240 |
| LQ027A3DA01 | SHARP | 2.7 | 320×240 |
| PD024OX4 | E Ink | 2.4 | 480×234 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TD024THEB2 | TPO | 2.4 | 480×240 |
| TD025THEEA | TPO | 2.5 | 640×240 |
| TM027CDH04 | Tianma | 2.7 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
