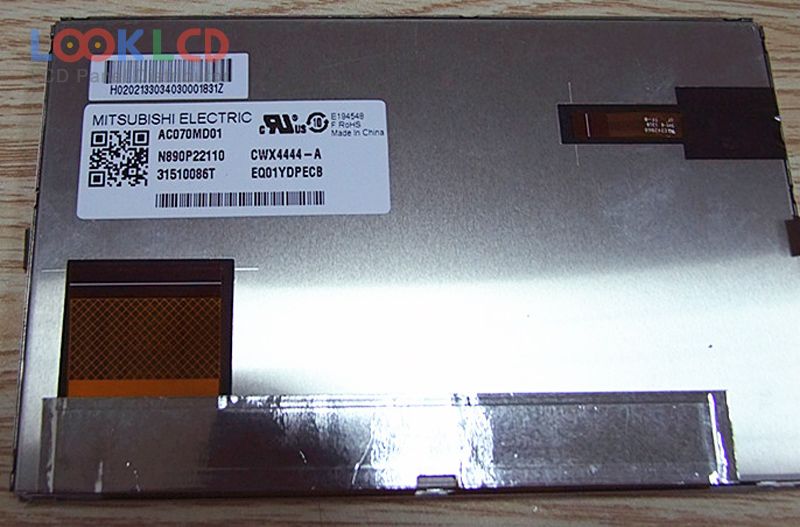

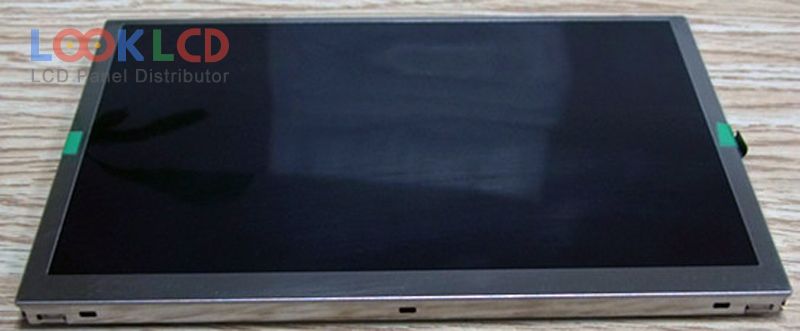

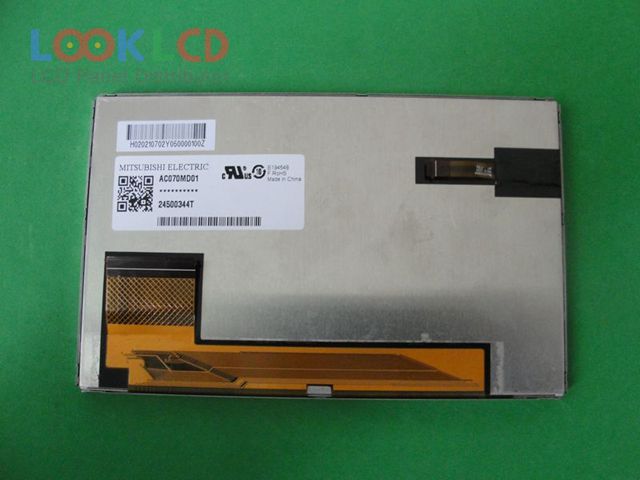

| Varenummer | AC070MD01 |
| Mærke | Mitsubishi |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | Mitsubishi |
| panel model | AC070MD01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 165×104×7.55 mm |
| overflade | Antiglare, Reflection 4.0% (Typ.) |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 40 (Max.)(Tr+Td) |
| synsvinkel | 55/55/60/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 60 pins |
| indgangsspænding | 3.3/13.0/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
