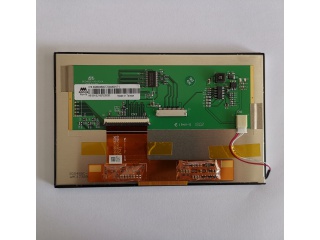

| Varenummer | AM-800480CTZQW-A5H |
| Mærke | AMPIRE |
| Størrelse | 7.0 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 800×480 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 262K |
| Baggrundsbelysning | 6S5P |
| Interface | LVDS |
| fabrikant | AMPIRE |
| modelnavn | AM-800480CTZQW-A5H |
| skærmstørrelse | 7.0 inch |
| skærmtype | LCM , a-Si TFT-LCD |
| pixel antal | 800(RGB)×480 (WVGA) 133PPI |
| arrangement | RGB Vertical Stripe |
| aktivt område (mm) | 152.4 × 91.44 (H×V) |
| omrids (mm) | 165 × 104.4 × 11.61 (H×V×D) |
| rammeareal (mm) | 15.48 × 93.85 (H×V) |
| behandling | - |
| luminans | 1500 cd/m² (Typ.) |
| kontrastforhold | 1000 : 1 (Typ.) (TM) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10) |
| respons | 25 (Typ.)(Tr+Td) ms |
| god udsigt kl | Symmetry |
| arbejdstilstand | IPS, Normally Black, Transmissive |
| farvedybde | 262K 58% NTSC |
| baggrundsbelysning | 6S5P WLED , 50K hours , With LED Driver |
| masse | - |
| anvendes til | Industrial Outdoor High Brightness |
| opdateringshastighed | 60Hz |
| berøringsskærm | Without |
| signaltype | LVDS (1 ch, 6-bit) , 20 pins Connector |
| spændingsforsyning | 12.0V (Typ.) |
| max. vurderinger | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
