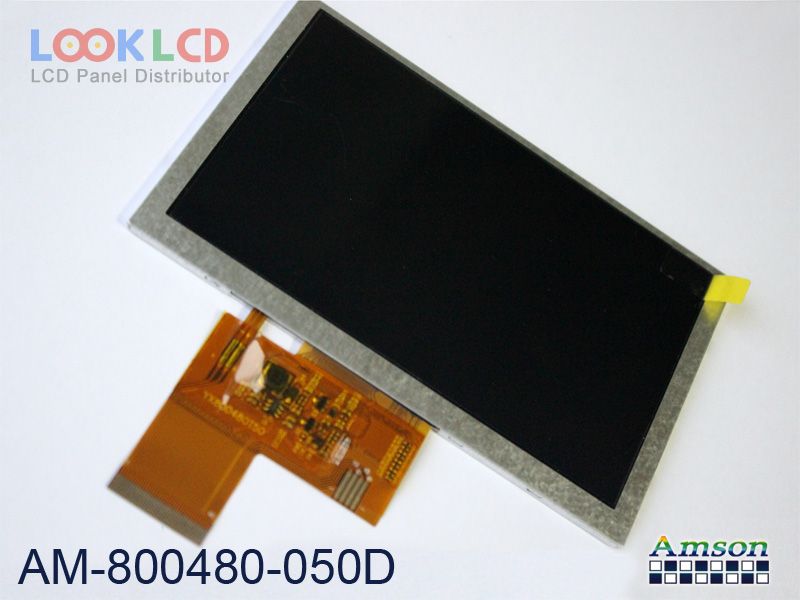

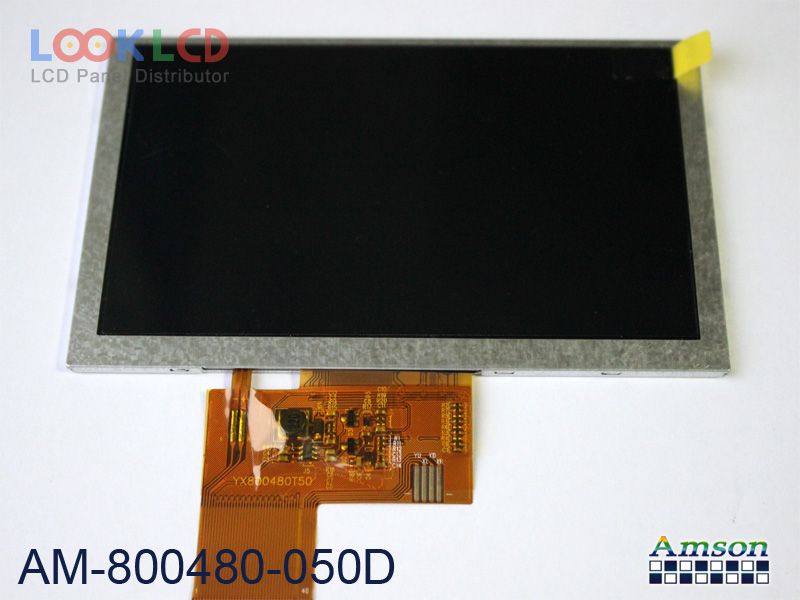

| Varenummer | AM-800480-050D |
| Mærke | Other |
| Størrelse | 5.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | Amson |
| panel model | AM-800480-050D |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 108×64.8 mm |
| omrids | 120.7×75.8×3.1 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 16.7M (8-bit) |
| responstid | |
| synsvinkel | |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
