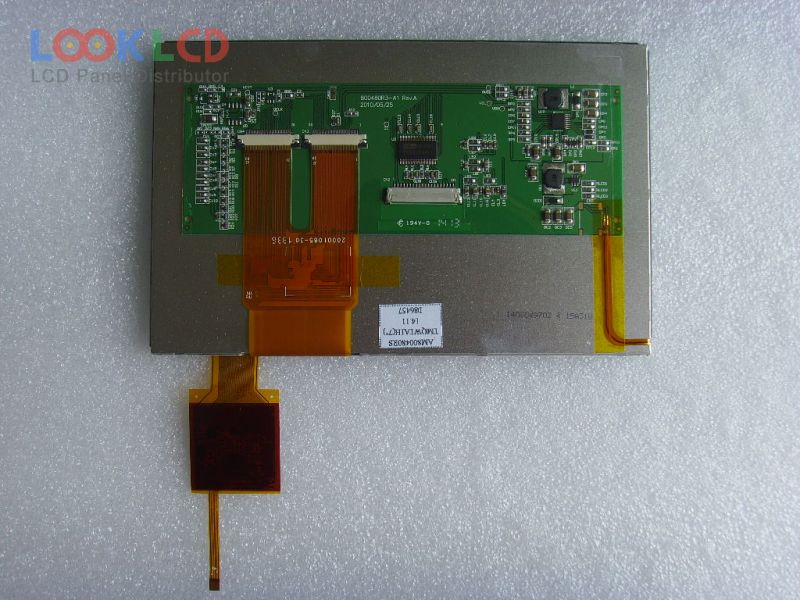

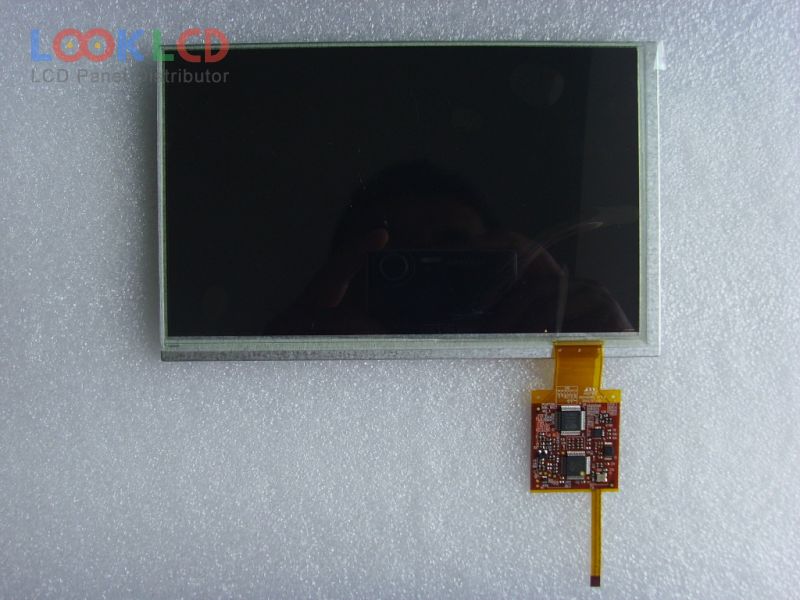

| Varenummer | AM-800480RSTMQW-TA1H |
| Mærke | AMPIRE |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AMPIRE |
| panel model | AM-800480RSTMQW-TA1H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 165×104.44×7.61 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S10PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
