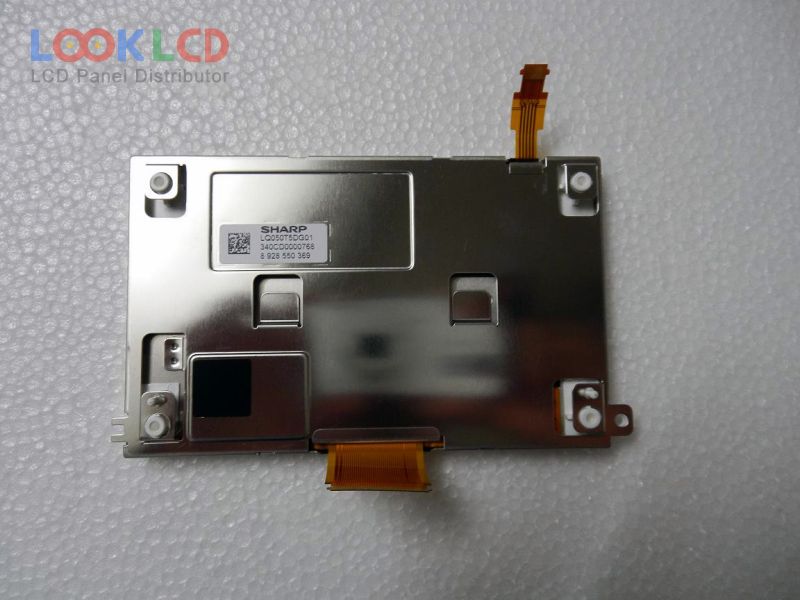

| Varenummer | LQ050T5DG01 |
| Mærke | SHARP |
| Størrelse | 5.0 |
| Ansøgning | CNS |
| Løsning | 400×240 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ050T5DG01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 400(RGB)×240 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 108×64.8 mm |
| omrids | 120.6×75.2×16.8 mm |
| overflade | Antiglare |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S2PWLEDWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3/9.0V (Typ.)(VCC/VDC) |
| Ansøgning | CNS |
