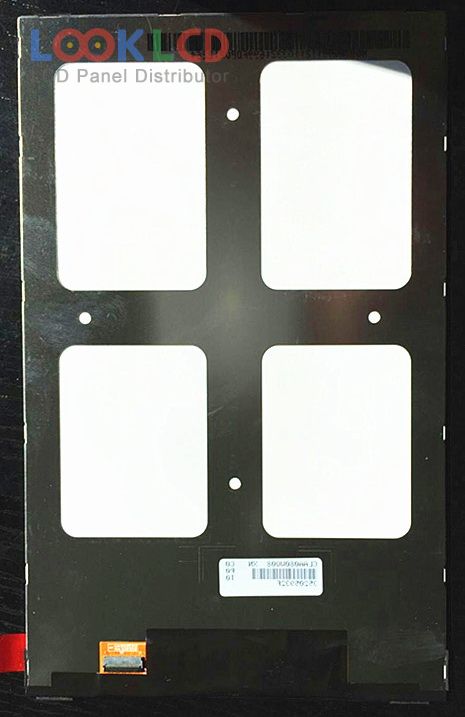

| Varenummer | CLAA080WQ08 XN |
| Mærke | CPT |
| Størrelse | 8.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | CPT |
| panel model | CLAA080WQ08 XN |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 107.64×172.224 mm |
| omrids | 114.6×184.1×4 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193153% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S3PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 31 pins |
| indgangsspænding | 1.8/3.3V (Typ.)(VDDI/VCCI) |
| Ansøgning | PAD |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| CLAA080WQ08 XN | CPT | 8.0 | 800×1280 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| LP079QX1-SP0V | LG Display | 7.9 | 1536×2048 |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
