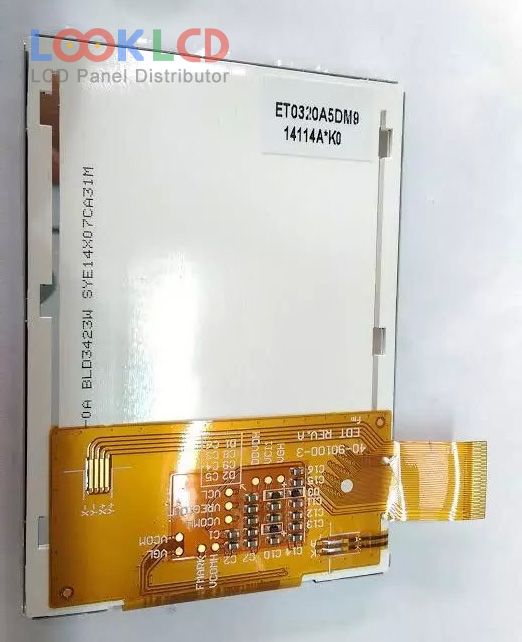

| Varenummer | ET0320A5DM9 |
| Mærke | EDT |
| Størrelse | 3.2 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 450:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | EDT |
| panel model | ET0320A5DM9 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.2 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 48.6×64.8 mm |
| omrids | 55.14×76.8×6 mm |
| overflade | |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 5/15 (Typ.)(Tr/Td) |
| synsvinkel | 63/70/65/72 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | 8/9/16/18-bit 8080 parallel, 41 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(IOVCC/VCC) |
| Ansøgning | MPH |
| 32WQF0H | SII | 3.2 | 240×400 |
| AMS320FS03 | Samsung | 3.2 | 320×480 |
| ET0320A5DM9 | EDT | 3.2 | 240×320 |
| H320QN01 V2 | AUO | 3.2 | 320×480 |
| HVA32WV1-D00 | HYDIS | 3.2 | 480×800 |
| LMS320HF46 | Samsung | 3.2 | 240×432 |
| LS032V8DY01 | SHARP | 3.2 | 640×480 |
| LT032MDQ7000 | JDI | 3.2 | 360×480 |
| TM032PDZ13 | Tianma | 3.2 | 320×480 |
| TM032PDZ17 | Tianma | 3.2 | 320×480 |
| BTL455496-W613L | BOE | 4.5 | 540×960 |
| ET0320A5DM9 | EDT | 3.2 | 240×320 |
| H546DAN01.2 | AUO | 5.5 | 1080×1920 |
| HVA37WV1-M02 | HYDIS | 3.7 | 480×800 |
| HVA37WV1-ME0 | HYDIS | 3.7 | 480×800 |
| LMS320HF46 | Samsung | 3.2 | 240×432 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| LS026B8PX04 | SHARP | 2.6 | 240×400 |
| TM032PDZ04 | Tianma | 3.2 | 320×480 |
| TM032PDZ13 | Tianma | 3.2 | 320×480 |
