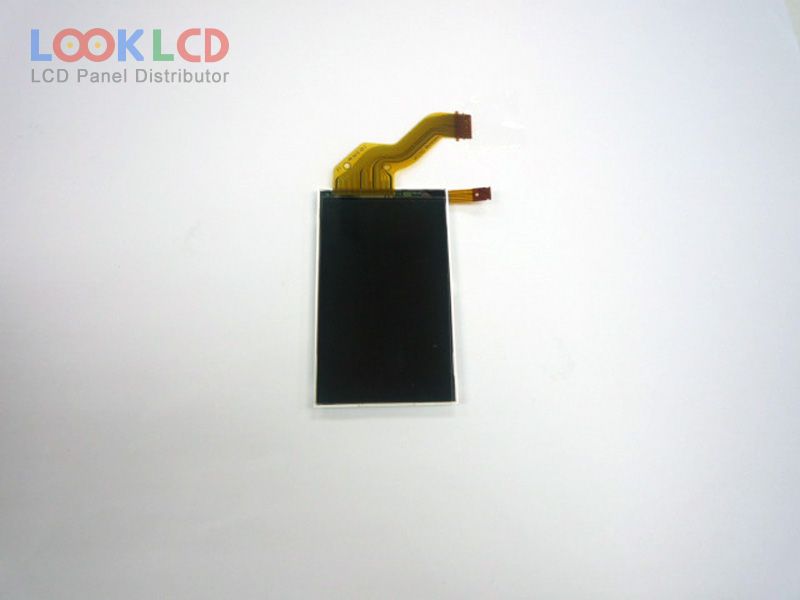

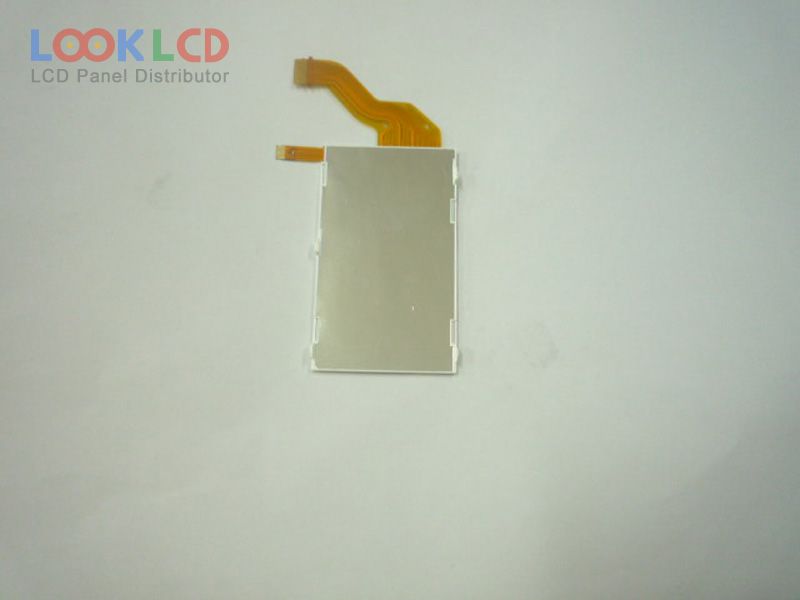

| Varenummer | LS026B8PX04 |
| Mærke | SHARP |
| Størrelse | 2.6 |
| Ansøgning | MPH |
| Løsning | 240×400 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 330:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LS026B8PX04 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 2.6 inch |
| løsning | 240(RGB)×400 , WQVGA |
| visningstilstand | ASV, Normally Black, Transflective |
| aktivt område | 33.84×56.4 mm |
| omrids | 40.6×65.7 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 330:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| vise farver | 262K , CIE193172% |
| responstid | 13/30 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1S5PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 4-bit), 29 pins |
| indgangsspænding | 10.6/-5.3V (Typ.)(VDD/GVSS) |
| Ansøgning | MPH |
