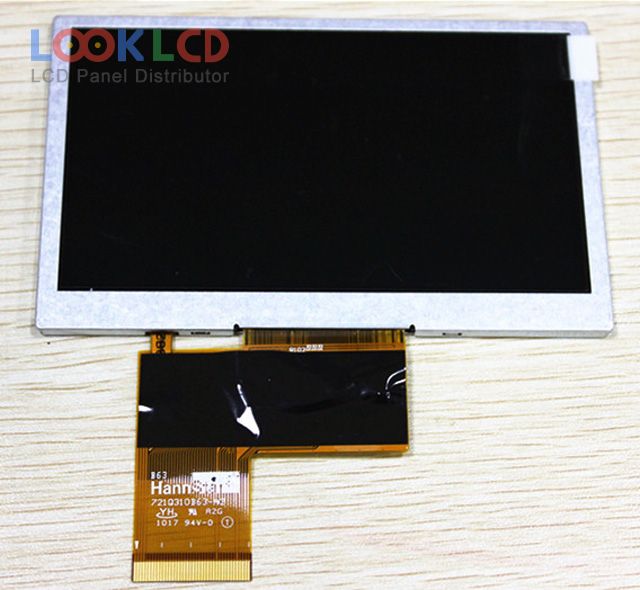

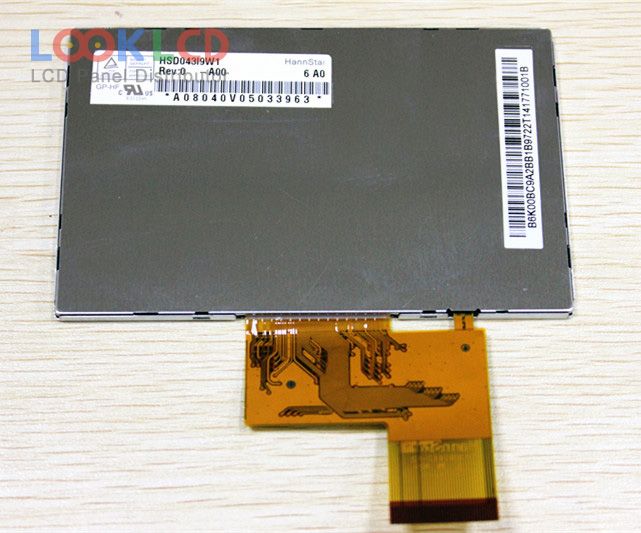

| Varenummer | HSD043I9W1-A00 |
| Mærke | HannStar |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 600:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HannStar |
| panel model | HSD043I9W1-A00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2×3.1 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | PND |
| 43WQW3T | SII | 4.3 | 480×272 |
| AMS427GL45-0 | Samsung | 4.3 | 480×800 |
| DLC0430NZG-T-1 | Other | 4.3 | 480×272 |
| HSD043I9W1-A00 | HannStar | 4.3 | 480×272 |
| HSD043I9W1-A00-R0 | HannStar | 4.3 | 480×272 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LR043JC211 | Innolux | 4.3 | 480×272 |
| 43WQW1H | SII | 4.3 | 480×272 |
| 43WQW4H | SII | 4.3 | 480×272 |
| 43WVF1G | SII | 4.3 | 800×480 |
| COM43T4115VTX | ORTUSTECH | 4.3 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| LMS480KC01 | Samsung | 4.8 | 800×480 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| NL4827HC19-01B | NLT | 4.3 | 480×272 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
