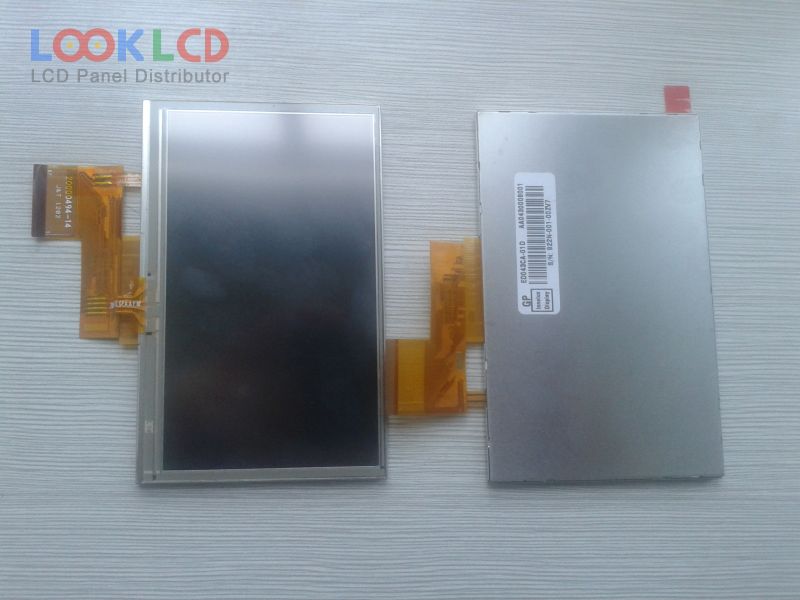

| Varenummer | ED043CA-01D |
| Mærke | Innolux |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CHIMEI INNOLUX |
| panel model | ED043CA-01D |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | Antiglare |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| indgangsspænding | 1.8/3.3V (Typ.)(DVDD/AVDD) |
| Ansøgning | PND |
| 43WQW4H | SII | 4.3 | 480×272 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| AMS427GL45-0 | Samsung | 4.3 | 480×800 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| 43WQW1H | SII | 4.3 | 480×272 |
| 43WQW3T | SII | 4.3 | 480×272 |
| A043FW02 V8 | AUO | 4.3 | 480×272 |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| HSD043I9W1-A00 | HannStar | 4.3 | 480×272 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LMS480JC01 | Samsung | 4.8 | 1024×600 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
