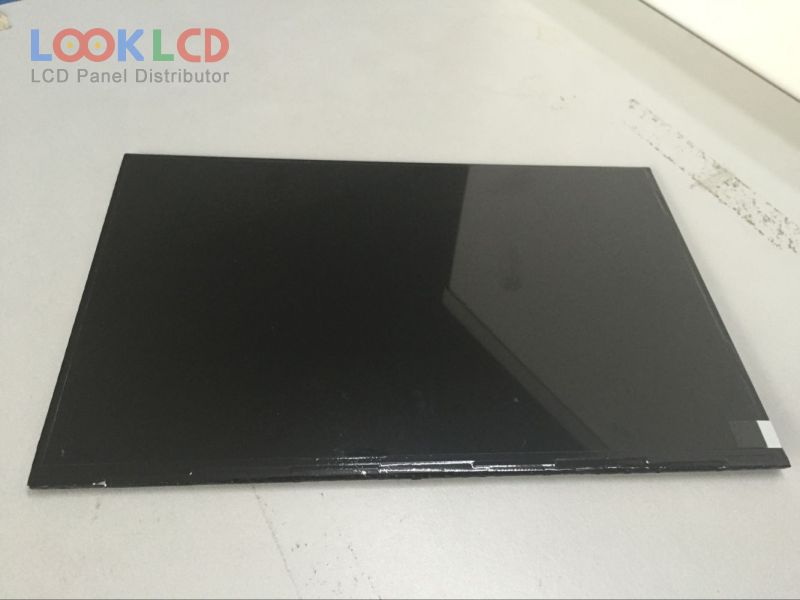

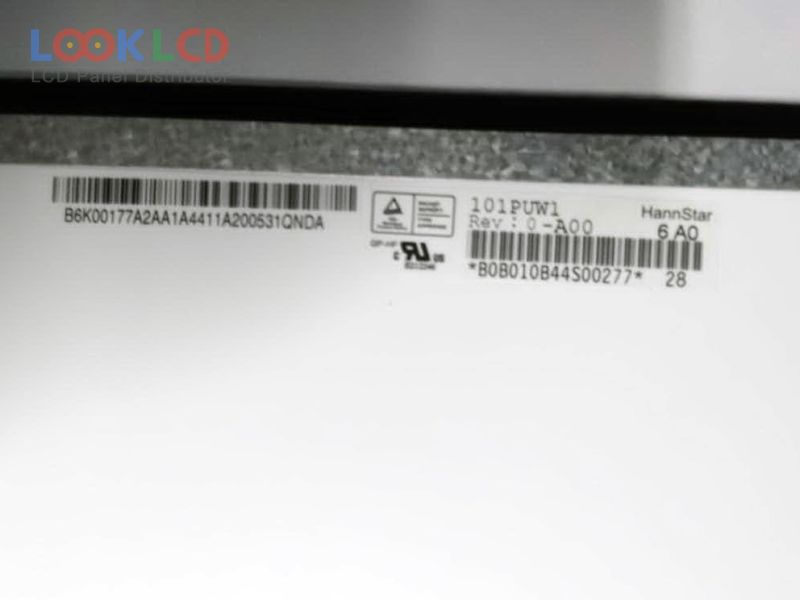

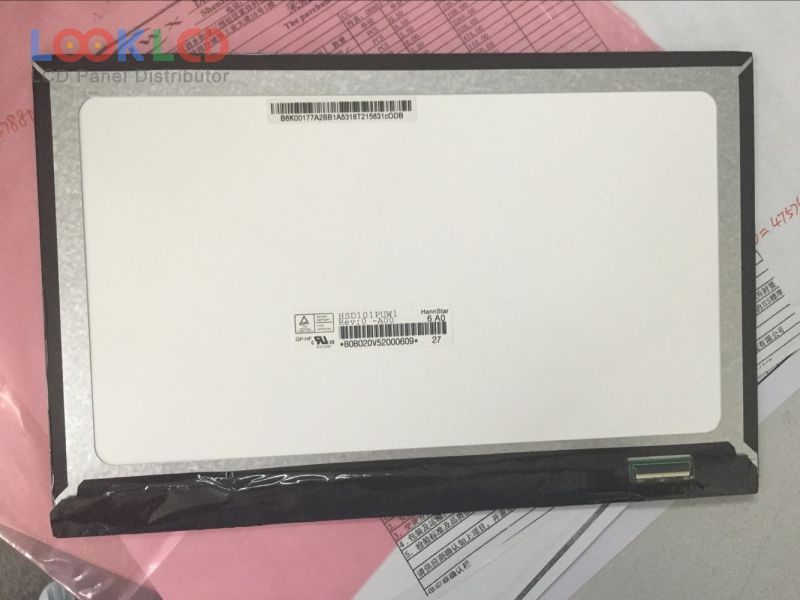

| Varenummer | HSD101PUW1-A00 |
| Mærke | HannStar |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 380 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | HannStar |
| panel model | HSD101PUW1-A00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | HS-IPS, Normally Black, Transmissive |
| aktivt område | 216.576×135.36 mm |
| omrids | 227.72×147.8×4.55 mm |
| overflade | Hard coating |
| lysstyrke | 380 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | MIPI (4 data lanes), 34 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| HSD101PWW1-F00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| BF097XN | Innolux | 9.7 | 1024×768 |
| CLAA100XA22XV | CPT | 10.0 | 1024×768 |
| LD070WX5-SM01 | LG Display | 7.0 | 900×1440 |
| LP097X02-SLA3 | LG Display | 9.7 | 1024×768 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| LTL070NL01-002 | Samsung | 7.0 | 1024×600 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| LTN097QL01-A02 | Samsung | 9.7 | 2048×1536 |
| P070ACB-DB1 | Innolux | 7.0 | 600×1024 |
