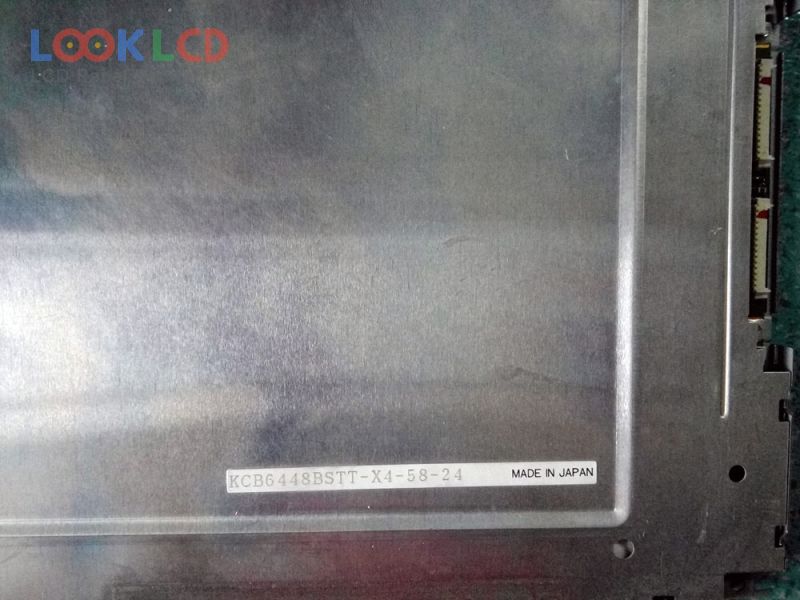

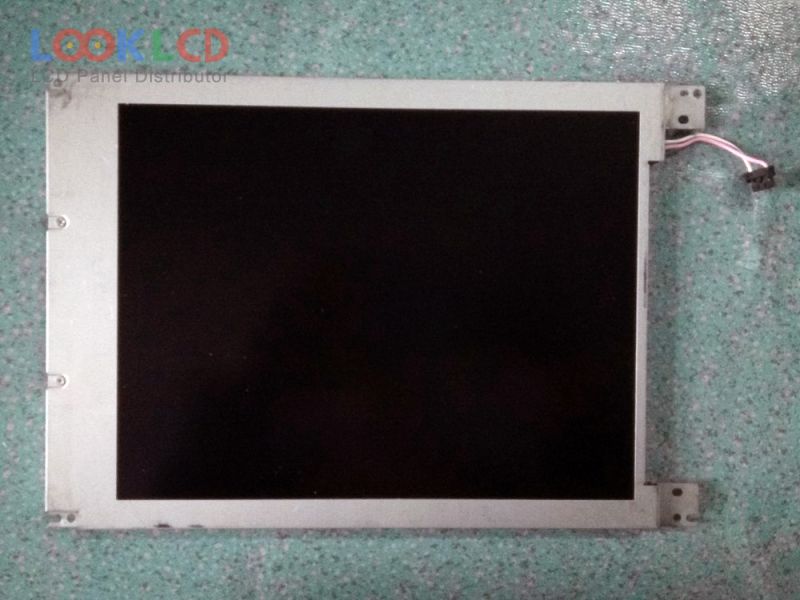

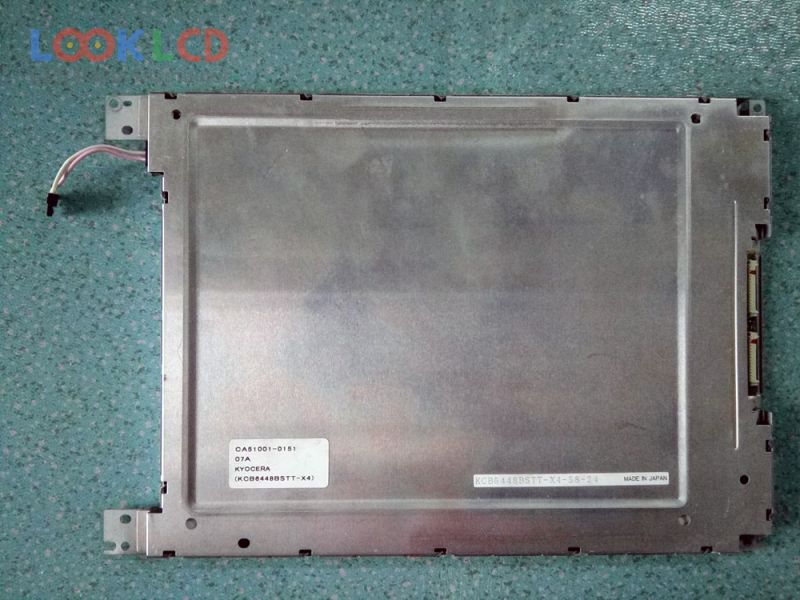

| Varenummer | KCB6448BSTT-X4 |
| Mærke | Kyocera |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 20:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | Kyocera |
| panel model | KCB6448BSTT-X4 |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 211.2×158.4 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 20:1 (Typ.) |
| vise farver | Color , CIE193140% |
| responstid | 160/80 (Typ.)(Tr/Td) |
| synsvinkel | |
| frekvens | 75Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (2ch, 8-bit) |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | IA |
| KCB6448BSTT-X1 | Kyocera | 10.4 | 640×480 |
| KCB6448BSTT-X11 | Kyocera | 10.4 | 640×480 |
| KCB6448BSTT-X4 | Kyocera | 10.4 | 640×480 |
| KCB6448BSTT-X5 | Kyocera | 10.4 | 640×480 |
| LC104S1-A1 | LG Display | 10.4 | 800×600 |
| LQ10DH15 | SHARP | 10.4 | 640×480 |
| LTD104EDZS | TOSHIBA | 10.4 | 1024×768 |
| LTM10C306Y | TOSHIBA | 10.4 | 1024×768 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| TM104SBH01 | Tianma | 10.4 | 800×600 |
| 70WVW5A | SII | 7.0 | 800×480 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| EL320.256-FD7 | Lumineq | 4.8 | 320×256 |
| LB121S1-A2 | LG Display | 12.1 | 800×600 |
| LQ092B5DW02 | SHARP | 9.2 | 960×160 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| LQ150X1LG81 | SHARP | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| PD064VL1 | E Ink | 6.4 | 640×480 |
| TCG121XGLPAPNN-AN20 | Kyocera | 12.1 | 1024×768 |
